V150LA20B, V150LA1 - UL Recognized Radial Lead Metal-Oxide Varistors

Harris

📥 Download Datasheet

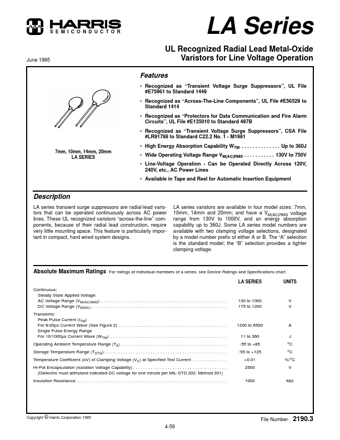

V150LA20B Datasheet Preview — This datasheet PDF includes multiple part numbers: V150LA20B, V150LA1. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	V150LA20B, V150LA1
Manufacturer	Harris
File Size	109.09 KB
Description	UL Recognized Radial Lead Metal-Oxide Varistors
Datasheet	V150LA1-Harris.pdf
Note	This datasheet PDF includes multiple part numbers: V150LA20B, V150LA1. Please refer to the document for exact specifications by model.

V150LA20B Product details

Description

LA series transient surge suppressors are radial-lead varistors that can be operated continuously across AC

Features

Recognized as “Transient Voltage Surge Suppressors”, UL File #E75961 to Standard 1449.
Recognized as “Across-The-Line Components”, UL File #E56529 to Standard 1414.
Recognized as “Protectors for Data Communication and Fire Alarm Circuits”, UL File #E135010 to Standard 497B.
Recognized as “Transient Voltage Surge Suppressors”, CSA File #LR91788 to Standard C22.2 No. 1 - M1981.
High Energy Absorption Capability WTM.
. . . . Up to 360J.
