HT-193TW - LED

Product Overview

Harvatek

Part number	HT-193TW
Manufacturer	Harvatek
File Size	705.83 KB
Description	LED
Datasheet	HT-193TW Datasheet
Note	This datasheet PDF includes multiple part numbers: HT-193TW, HT-193UYG. Please refer to the document for exact specifications by model.

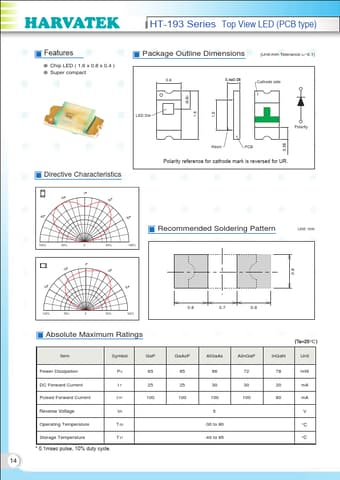

Additional preview pages of the HT-193TW datasheet.

Chip LED ( 1.6 x 0.8 x 0.4 ).
Super compact HT-193 Series Top View LED (PCB type) Package Outline Dimensions (Unit:mm Tolerance:+/-0.1) 0.8 0.4±0.08 Cathode side (0.6) 1.6 1.0 0.35 0.8 LED Die Polarity Directive Characteristics 0 -30 -60 30 60 100% 50% 0 50% 100% Resin PCB Polarity reference for cathode mark is reversed for UR. Recommended Soldering Pattern Unit: mm 0 -30 -60 30 60 100% 50% 0 50% 100% 0.8 0.7 0.8 Absolute Maximum Ratings Item Symbol.
