60HS101-3008-001 HYBRID STEPPING MOTOR

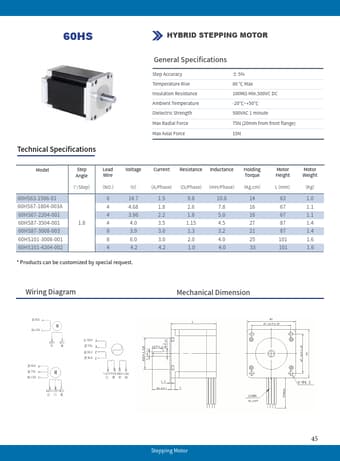

60HS HYBRID STEPPING MOTOR Technical Specifications General Specifications Step Accuracy Temperature Rise Insulation Resistance Ambient Temperature Dielectric Strength Max Radial Force Max Axial Force ± 5% 80 ℃ Maxl 100MΩ Min.500VC DC -20℃~+50℃ 500VAC 1 minute 75N (20mm from front flange) 15N Model Step Angle Lead Wire （°/Step）（NO.） 60HS63-1506-01 6 60HS67-1804-003A 4 60HS67-2204-001 4 60HS87-3504-001 1.8 4 60HS87-3008-003 8 60HS101-3008-001 8 60HS101-4204-002 4 Voltage.

60HS101-3008-001 Datasheet (1.41 MB)

60HS101-3008-001 Datasheet Preview — Preview of 60HS101-3008-001 PDF

Datasheet Details

Part number:

60HS101-3008-001

Manufacturer:

HeTai

File Size:

1.41 MB

Description:

Hybrid stepping motor.
