HDSP-G10x, HDSP-7511_Hewlett - (HDSP-xxxx) Low Current Seven Segment Displays

Hewlett-Packard

📥 Download Datasheet

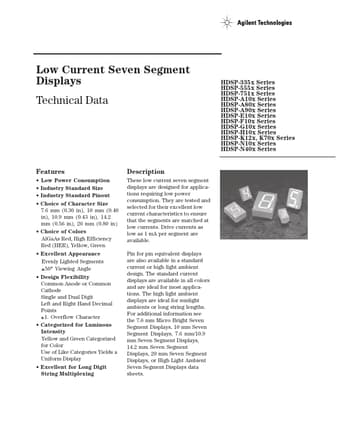

HDSP-G10x Datasheet Preview — This datasheet PDF includes multiple part numbers: HDSP-G10x, HDSP-7511_Hewlett. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HDSP-G10x, HDSP-7511_Hewlett
Manufacturer	Hewlett-Packard
File Size	340.73 KB
Description	(HDSP-xxxx) Low Current Seven Segment Displays
Datasheet	HDSP-7511_Hewlett-Packard.pdf
Note	This datasheet PDF includes multiple part numbers: HDSP-G10x, HDSP-7511_Hewlett. Please refer to the document for exact specifications by model.

HDSP-G10x Product details

Description

These low current seven segment displays are designed for applications requiring low power consumption.

Features

Low Power Consumption Industry Standard Size Industry Standard Pinout Choice of Character Size 7.6 mm (0.30 in), 10 mm (0.40 in), 10.9 mm (0.43 in), 14.2 mm (0.56 in), 20 mm (0.80 in) Choice of Colors AlGaAs Red, High Efficiency Red (HER), Yellow, Green Excellent Appearance Evenly Lighted Segments ± 50° Viewing Angle Design Flexibility Common Anode or Common Cathode Single and Dual Digit Left and Right Hand Decimal Points ± 1. Overflow Character Categorize.
