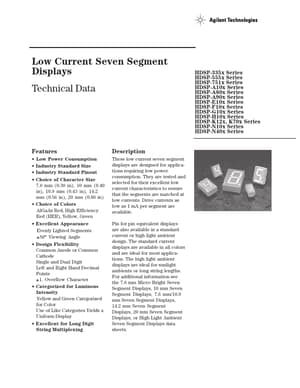

HDSP751x (HDSP-xxxx) Low Current Seven Segment Displays

These low current seven segment displays are designed for applications requiring low power consumption. They are tested and selected for their excellent low current characteristics to ensure that the segments are matched at low currents. Drive currents as low as 1 mA per segment are available. Pin f.

HDSP751x Features

* Low Power Consumption Industry Standard Size Industry Standard Pinout Choice of Character Size 7.6 mm (0.30 in), 10 mm (0.40 in), 10.9 mm (0.43 in), 14.2 mm (0.56 in), 20 mm (0.80 in) Choice of Colors AlGaAs Red, High Efficiency Red (HER), Yellow, Green Excell
