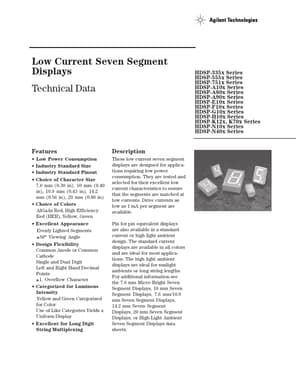

datasheet Preview Page 1 from Datasheet4u.com

HDSPG10x, HDSP-7511_Hewlett (HDSP-xxxx) Low Current Seven Segment Displays

Low Current Seven Segment Displays Technical Data HDSP-335x Series HDSP-555x Series HDSP-751x Series HDSP-A10x Series HDSP-A80x Series HDSP-A90x Seri.
These low current seven segment displays are designed for applications requiring low power consumption.

HDSP-7511_Hewlett-Packard.pdf

HDSPG10x Datasheet Preview — This datasheet PDF includes multiple part numbers: HDSPG10x, HDSP-7511_Hewlett. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HDSPG10x, HDSP-7511_Hewlett

Manufacturer:

Hewlett-Packard

File Size:

340.73 KB

Description:

(HDSP-xxxx) Low Current Seven Segment Displays

Note:

This datasheet PDF includes multiple part numbers: HDSPG10x, HDSP-7511_Hewlett.
Please refer to the document for exact specifications by model.

Features

* Low Power Consumption Industry Standard Size Industry Standard Pinout Choice of Character Size 7.6 mm (0.30 in), 10 mm (0.40 in), 10.9 mm (0.43 in), 14.2 mm (0.56 in), 20 mm (0.80 in) Choice of Colors AlGaAs Red, High Efficiency Red (HER), Yellow, Green Excell

Applications

* requiring low power consumption. They are tested and selected for their excellent low current characteristics to ensure that the segments are matched at low currents. Drive currents as low as 1 mA per segment are available. Pin for pin equivalent displays are also available in a standard current or
