HP5082-762x Datasheet - Hewlett-Packard

HP5082-762x 7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display

The 7.6 mm (0.3 inch) and 10.9 mm (0.43 inch) LED seven segment displays are designed for viewing distances up to 3 metres (10 feet) and 5 metres (16 feet). These devices use an industry standard size package and pinouts. All devices are available as either common anode or common cathode. Devices .

HP5082-762x Features

* Industry Standard Size

* Industry Standard Pinout 7.62 mm (0.300 inch) DIP Leads on 2.54 mm (0.100 inch) Centers

* Choice of Colors Red, AlGaAs Red, High Efficiency Red, Yellow, Green

* Excellent Appearance Evenly Lighted Segments Gray Package Gives Optimum Contrast

HP5082-762x Datasheet (311.98 KB)

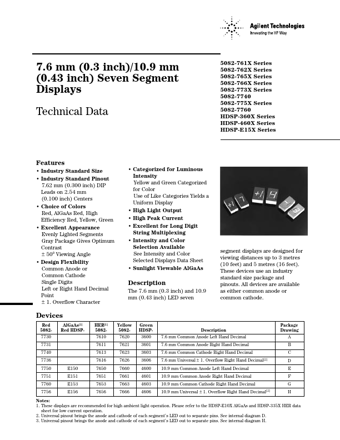

HP5082-762x Datasheet Preview — Preview of HP5082-762x PDF

Datasheet Details

Part number:

HP5082-762x

Manufacturer:

Hewlett-Packard

File Size:

311.98 KB

Description:

7.6mm (0.3 inch)/10.9mm (0.43 inch) seven segment display.
