HP5082-765x, HP5082-7740_Hewlett Datasheet - Hewlett-Packard

HP5082-765x, HP5082-7740_Hewlett, 7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display

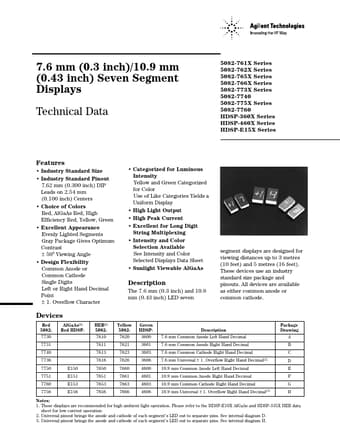

7.6 mm (0.3 inch)/10.9 mm (0.43 inch) Seven Segment Displays Technical Data 5082-761X Series 5082-762X Series 5082-765X Series 5082-766X Series 5082-.
The 7.

HP5082-7740_Hewlett-Packard.pdf

HP5082-765x Datasheet Preview — This datasheet PDF includes multiple part numbers: HP5082-765x, HP5082-7740_Hewlett. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HP5082-765x, HP5082-7740_Hewlett

Manufacturer:

Hewlett-Packard

File Size:

311.98 KB

Description:

7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display

Note:

This datasheet PDF includes multiple part numbers: HP5082-765x, HP5082-7740_Hewlett.
Please refer to the document for exact specifications by model.

Features

* Industry Standard Size
* Industry Standard Pinout 7.62 mm (0.300 inch) DIP Leads on 2.54 mm (0.100 inch) Centers
* Choice of Colors Red, AlGaAs Red, High Efficiency Red, Yellow, Green
* Excellent Appearance Evenly Lighted Segments Gray Package Gives Optimum Contrast

Applications

* Pin for pin equivalent displays are also available in a low current or high light ambient design. The low current displays are ideal for portable applications. The high light ambient displays are ideal for high light ambients or long string lengths. For additional information see the Low Current
