HP5082-7760, HP5082-7740_Hewlett - 7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display

HP5082-7760 Description

7.6 mm (0.3 inch)/10.9 mm (0.43 inch) Seven Segment Displays Technical Data 5082-761X Series 5082-762X Series 5082-765X Series 5082-766X Series 5082-.
The 7.

HP5082-7760 Features

* Industry Standard Size
* Industry Standard Pinout 7.62 mm (0.300 inch) DIP Leads on 2.54 mm (0.100 inch) Centers
* Choice of Colors Red, AlGaAs Red, High Efficiency Red, Yellow, Green
* Excellent Appearance Evenly Lighted Segments Gray Package Gives Optimum Contrast

HP5082-7760 Applications

* Pin for pin equivalent displays are also available in a low current or high light ambient design. The low current displays are ideal for portable applications. The high light ambient displays are ideal for high light ambients or long string lengths. For additional information see the Low Current

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HP5082-7760, HP5082-7740_Hewlett. Please refer to the document for exact specifications by model.

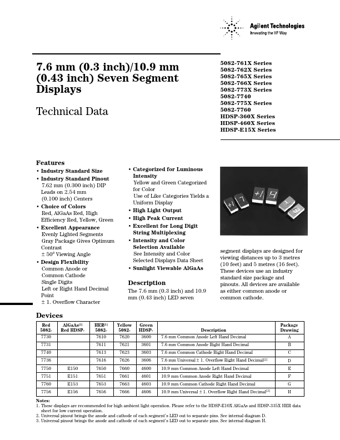

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HP5082-7760, HP5082-7740_Hewlett
Manufacturer
Hewlett-Packard
File Size
311.98 KB
Datasheet
HP5082-7740_Hewlett-Packard.pdf
Description
7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display
Note
This datasheet PDF includes multiple part numbers: HP5082-7760, HP5082-7740_Hewlett.
Please refer to the document for exact specifications by model.
