HLK-PM01 - 3W Ultra-compact Power Module

This page provides the datasheet information for the HLK-PM01, a member of the HLK-PM01-Hi 3W Ultra-compact Power Module family.

Features

  • Meet UL, CE requirements,.
  • Ultra-thin, ultra-small.
  • All voltage input (AC: 90 ~ 264V).
  • Low ripple and low noise.
  • Output overload and short circuit protection.
  • High efficiency, high power density.
  • The product is designed to meet the requirements of EMC and Safety Test.
  • Low power consumption, environmental protection, no-load loss.

📥 Download Datasheet

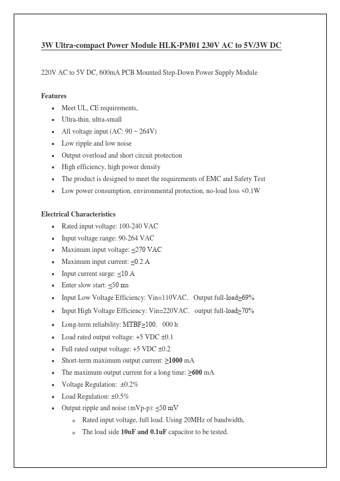

Datasheet preview – HLK-PM01

Datasheet Details

Part number HLK-PM01
Manufacturer Hi-Link
File Size 555.26 KB
Description 3W Ultra-compact Power Module
Datasheet download datasheet HLK-PM01 Datasheet
Additional preview pages of the HLK-PM01 datasheet.

📁 Similar Datasheet

Other Datasheets by Hi-Link

Full PDF Text Transcription

Click to expand full text
3W Ultra-compact Power Module HLK-PM01 230V AC to 5V/3W DC 220V AC to 5V DC, 600mA PCB Mounted Step-Down Power Supply Module Features  Meet UL, CE requirements,  Ultra-thin, ultra-small  All voltage input (AC: 90 ~ 264V)  Low ripple and low noise  Output overload and short circuit protection  High efficiency, high power density  The product is designed to meet the requirements of EMC and Safety Test  Low power consumption, environmental protection, no-load loss <0.1W Electrical Characteristics  Rated input voltage: 100-240 VAC  Input voltage range: 90-264 VAC  Maximum input voltage: ≤270 VAC  Maximum input current: ≤0.
