HIRF730 - N-CHANNEL POWER MOSFET

Product Overview

Hi-Sincerity Mocroelectronics

Datasheet Details

Part number	HIRF730
Manufacturer	Hi-Sincerity Mocroelectronics
File Size	81.19 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	HIRF730 Datasheet
Note	This datasheet PDF includes multiple part numbers: HIRF730, HIRF730_Hi. Please refer to the document for exact specifications by model.

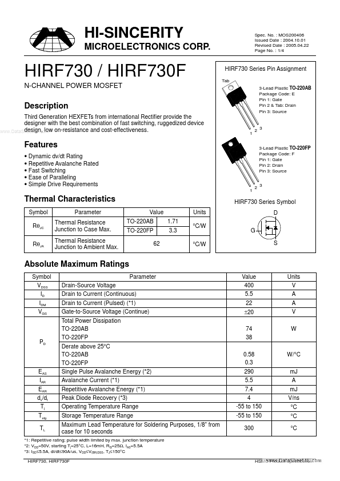

Additional preview pages of the HIRF730 datasheet.

Product details

Description

Third Generation HEXFETs from international Rectifier provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

Features

Dynamic dv/dt Rating.
Repetitive Avalanche Rated.
Fast Switching.
Ease of Paralleling.
Simple Drive Requirements 1 3-Lead Plastic TO-220FP Package Code: F Pin 1: Gate Pin 2: Drain Pin 3: Source 3 2 Thermal Characteristics Symbol RθJC RθJA Parameter Thermal Resistance Junction to Case Max. Thermal Resistance Junction to Ambient Max. Value TO-220AB TO-220FP 62 1.71 3.3 Units °C/W °C/W HIRF730 Series Symbol D G S Absolute Maximum Ratings Symbol VDS.
