HLM358S

Low Power Dual Operational Ampilfiers

HLM358S Features

* Two internally compensated OP amps

* Internally frequency compensated for unity gain

* Short Circuit Protected Outputs

* Wide power supply range: 3VDC to 40VDC (Single supply)

* Input common-mode voltage range includes ground

* Large output voltage s

HLM358S General Description

These devices consist of two independent, high gain, internally frequencycompensated operational amplifiers designed operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3V to 40V, and Vcc is at least.

HLM358S Datasheet (230.81 KB)

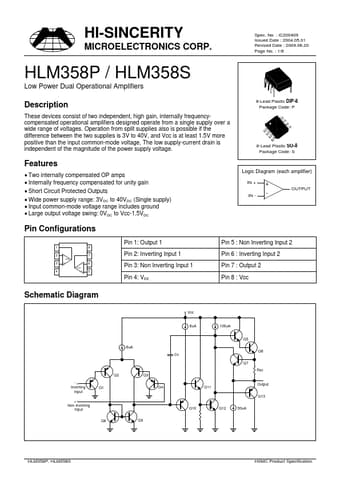

Preview of HLM358S PDF

Datasheet Details

Part number:

HLM358S

Manufacturer:

Hi-Sincerity

File Size:

230.81 KB

Description:

Low power dual operational ampilfiers.
HI-SINCERITY MICROELECTRONICS CORP. Spec. No. : IC200409 Issued Date : 2004.05.01 Revised Date : 2009.08.20 Page No. : 1/6 HLM358P / HLM358S Low Pow.
