SC3D10120H - 1200V Silicon Carbide Schottky Diode

Datasheet Summary

Description

1200V Schottky rectifier Zero Forward/Reverse Recovery Current High Blocking Voltage High frequency operation Switching characteristics independent of temperature Positive temperature coefficient of forward voltage(VF) BENEFIT Replace bipolar with unipolar rectifie

📥 Download Datasheet

Datasheet preview – SC3D10120H

Datasheet Details

Part number SC3D10120H
Manufacturer HiSemicon
File Size 703.49 KB
Description 1200V Silicon Carbide Schottky Diode
Datasheet download datasheet SC3D10120H Datasheet
Additional preview pages of the SC3D10120H datasheet.

📁 Similar Datasheet

  • SC300 - Strain Measuring Systems Short Course (Vishay Siliconix)
  • SC3004 - INFRARED REMOTE CONTROL TRANSMITTER (Silan Semiconductors)
  • SC3004S - INFRARED REMOTE CONTROL TRANSMITTER (Silan Semiconductors)
  • SC3010 - INFRARED REMOTE CONTROL TRANSMITTER (Silan Microelectronics)
  • SC3010S - INFRARED REMOTE CONTROL TRANSMITTER (Silan Microelectronics)
  • sc3018b - Quartz SAW Frequency Stability (RF Monolithics Inc)
  • SC3040B - 400.0 MHz Differential Sine-Wave Clock (RF Monolithics)
  • SC3041B - 300.0 MHz Differential Sine-Wave Clock (RF Monolithics)
  • SC3042B - 624.0 MHz Differential Sine-Wave Clock (RF Monolithics)
  • SC3044B - 251.00 MHz Differential Sine-Wave Clock (RF Monolithics)
Other Datasheets by HiSemicon
  • SC3D02065A - Silicon Carbide Schottky Barrier Diode
  • SC3D06065I - 650V Silicon Carbide Schottky Diode
  • SC3D20120D - Silicon Carbide Schottky Barrier Diode

Full PDF Text Transcription

Click to expand full text

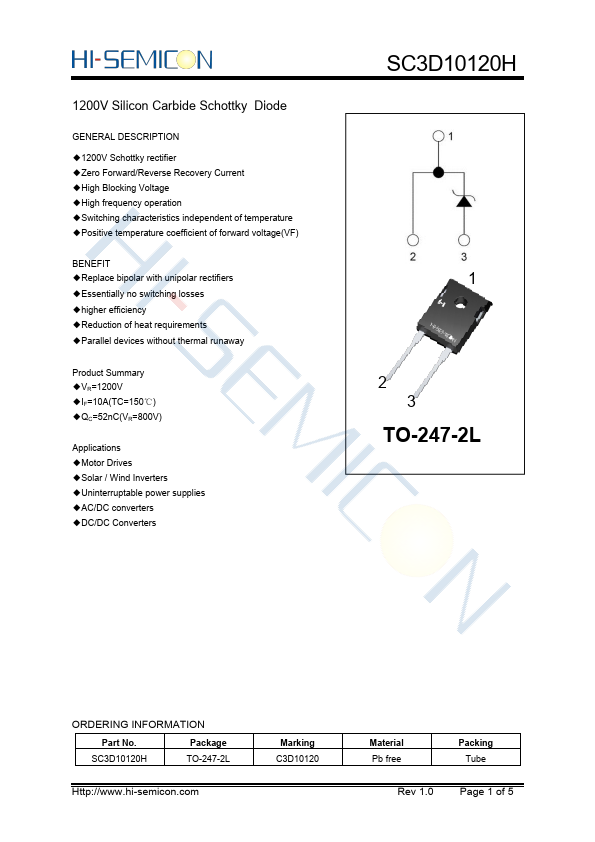

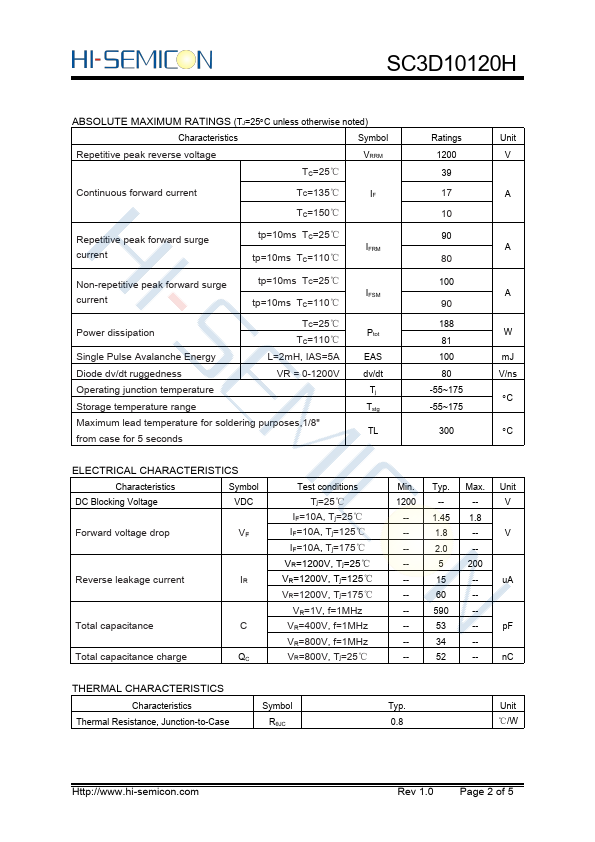

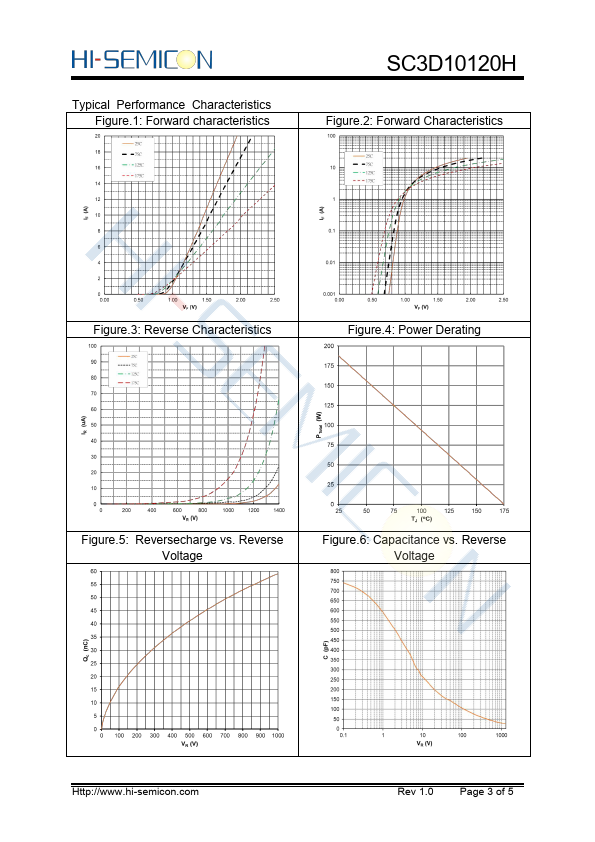

1200V Silicon Carbide Schottky Diode GENERAL DESCRIPTION ◆1200V Schottky rectifier ◆Zero Forward/Reverse Recovery Current ◆High Blocking Voltage ◆High frequency operation ◆Switching characteristics independent of temperature ◆Positive temperature coefficient of forward voltage(VF) BENEFIT ◆Replace bipolar with unipolar rectifiers ◆Essentially no switching losses ◆higher efficiency ◆Reduction of heat requirements ◆Parallel devices without thermal runaway Product Summary ◆VR=1200V ◆IF=10A(TC=150℃) ◆QC=52nC(VR=800V) Applications ◆Motor Drives ◆Solar / Wind Inverters ◆Uninterruptable power supplies ◆AC/DC converters ◆DC/DC Converters SC3D10120H 1 2 3 TO-247-2L ORDERING INFORMATION Part No. SC3D10120H Package TO-247-2L Http://www.hi-semicon.
