SCF65R190C - 650V N-CHANNEL MOSFE

Product Overview

HiSemicon

📥 Download Datasheet

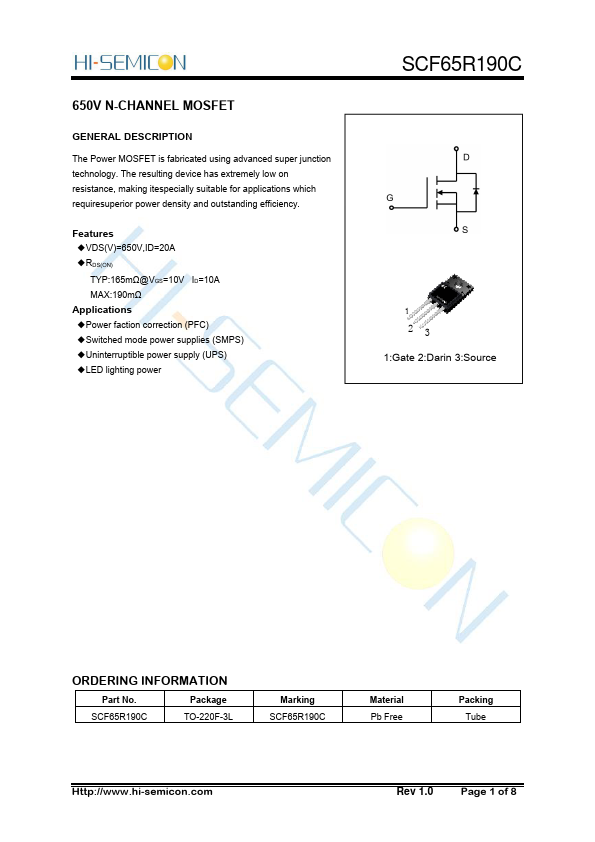

SCF65R190C 650V N-CHANNEL MOSFE by HiSemicon - Datasheet Preview — Datasheet preview – SCF65R190C

Datasheet Details

Part number	SCF65R190C
Manufacturer	HiSemicon
File Size	672.44 KB
Description	650V N-CHANNEL MOSFE
Datasheet	SCF65R190C Datasheet

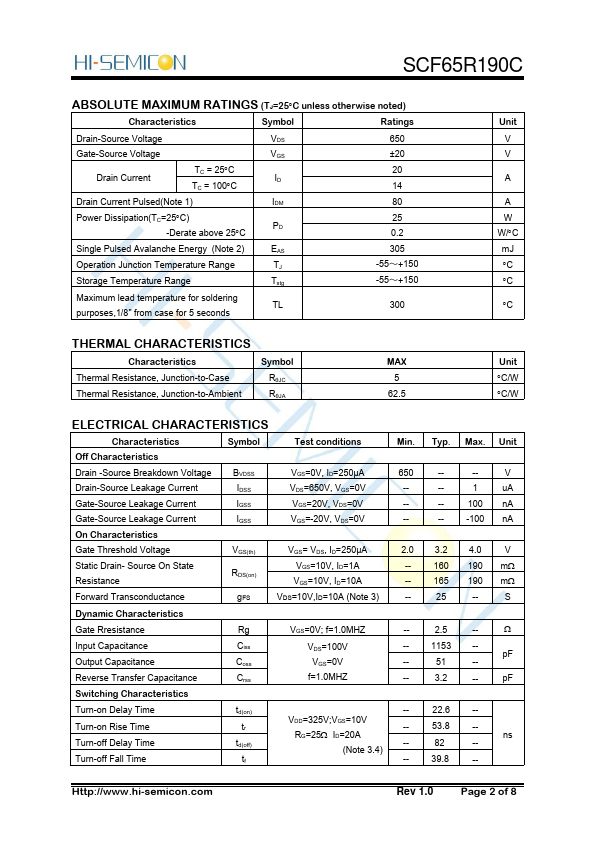

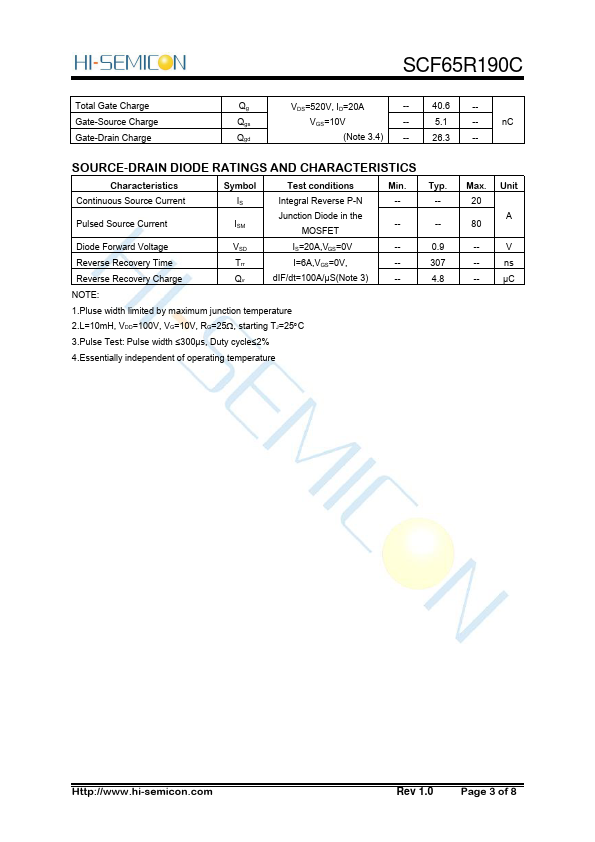

Additional preview pages of the SCF65R190C datasheet.

Product details

Description

The Power MOSFET is fabricated using advanced super junction technology.

Features

VDS(V)=650V,ID=20A.
RDS(ON) TYP:165mΩ@VGS=10V ID=10A MAX:190mΩ.
