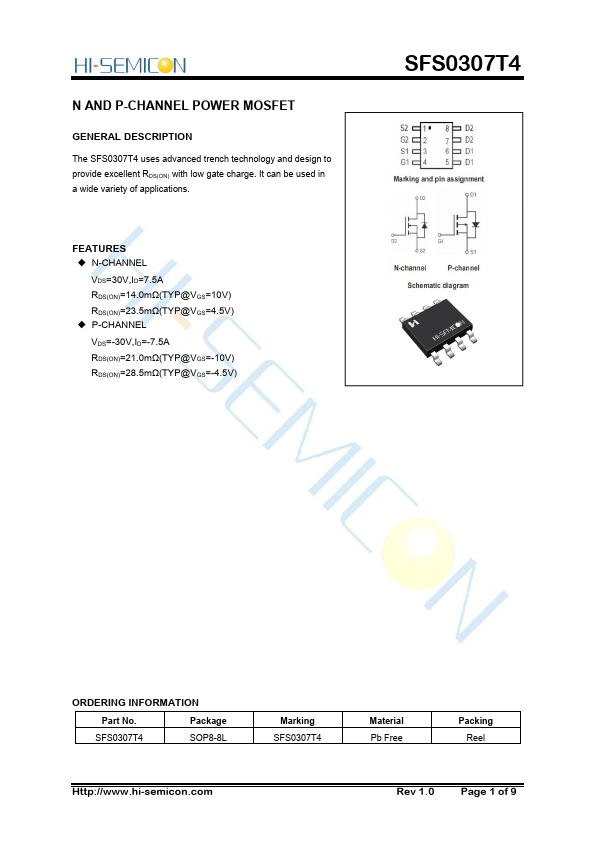

SFS0307T4
DESCRIPTION
The SFS0307T4 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications.
FEATURES
- N-CHANNEL
VDS=30V,ID=7.5A RDS(ON)=14.0mΩ(TYP@VGS=10V) RDS(ON)=23.5mΩ(TYP@VGS=4.5V)
- P-CHANNEL VDS=-30V,ID=-7.5A RDS(ON)=21.0mΩ(TYP@VGS=-10V) RDS(ON)=28.5mΩ(TYP@VGS=-4.5V)
ORDERING INFORMATION
Part No.
Package
SOP8-8L
Http://.hi-semicon.
Marking SFS0307T4
Material Pb Free
Packing Reel
Rev 1.0
Page 1 of 9

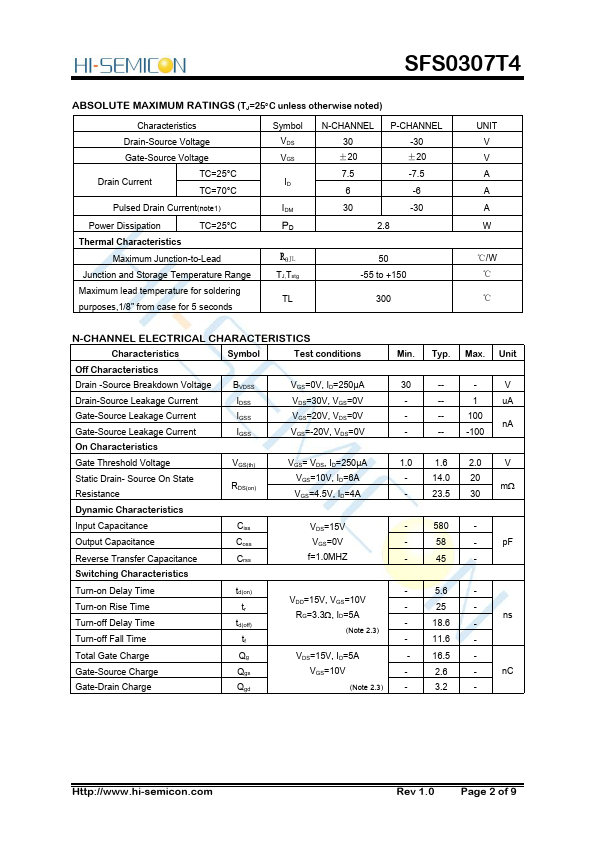

ABSOLUTE MAXIMUM RATINGS (TJ=25C unless otherwise noted)
Characteristics Drain-Source Voltage Gate-Source Voltage
Drain Current
TC=25°C TC=70°C
Pulsed Drain Current(note1)
Power Dissipation
TC=25°C
Thermal Characteristics
Maximum Junction-to-Lead
Junction and Storage Temperature Range
Maximum lead temperature for soldering purposes,1/8" from case for 5 seconds
Symbol VDS VGS
N-CHANNEL P-CHANNEL
30 ±20
-30 ±20
-7.5
-6
-30...
