SFS0405T4 N and P-CHANNEL POWER MOSFET

HiSemicon

Description

N and P-CHANNEL POWER MOSFET GENERAL .
The SFS0405T4 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

📥 Download Datasheet

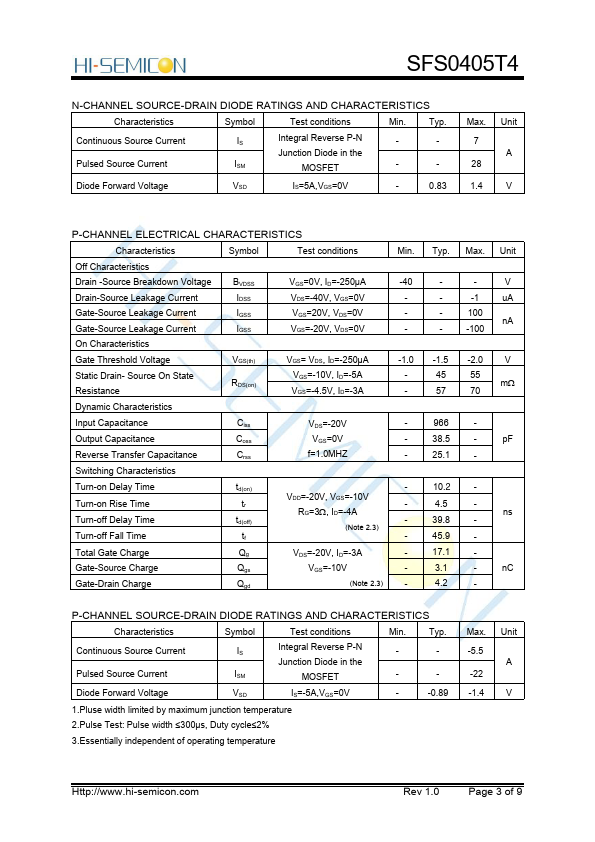

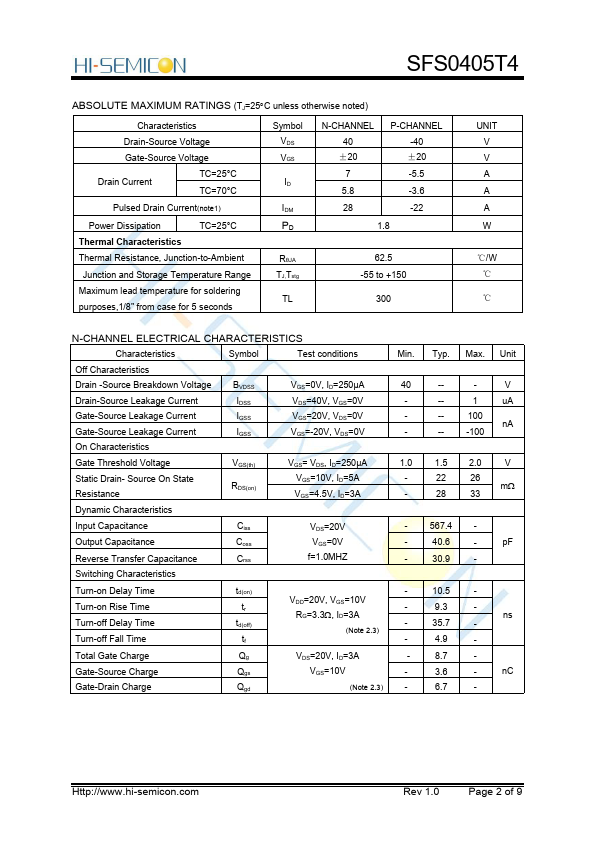

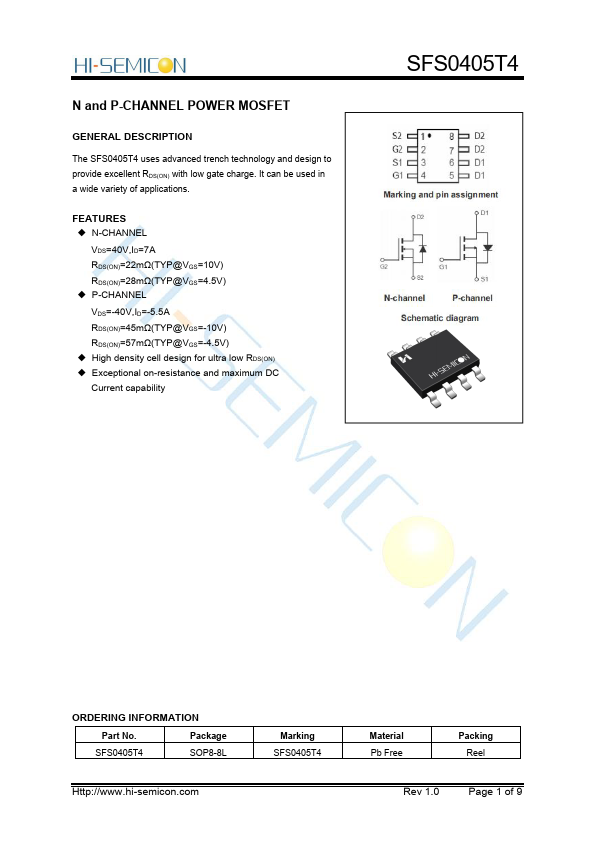

SFS0405T4 Datasheet Preview — Preview of SFS0405T4 PDF

Datasheet Specifications

Part number: SFS0405T4
Manufacturer: HiSemicon
File Size: 831.50 KB
Datasheet: SFS0405T4-HiSemicon.pdf
Description: N and P-CHANNEL POWER MOSFET

Features

* N-CHANNEL VDS=40V,ID=7A RDS(ON)=22mΩ(TYP@VGS=10V) RDS(ON)=28mΩ(TYP@VGS=4.5V)
* P-CHANNEL VDS=-40V,ID=-5.5A RDS(ON)=45mΩ(TYP@VGS=-10V) RDS(ON)=57mΩ(TYP@VGS=-4.5V)
* High density cell design for ultra low RDS(ON)
* Exceptional on-resistance and maximum DC Current capability SFS0405T
