SFS0407T4 N AND P-CHANNEL POWER MOSFET

SFS0407T4 Description

N AND P-CHANNEL POWER MOSFET GENERAL .
The SFS0407T4 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

SFS0407T4 Features

* N-CHANNEL VDS=40V,ID=7A RDS(ON)=20.0mΩ(TYP@VGS=10V) RDS(ON)=24.0mΩ(TYP@VGS=4.5V)
* P-CHANNEL VDS=-40V,ID=-7A RDS(ON)=30.0mΩ(TYP@VGS=-10V) RDS(ON)=37.0mΩ(TYP@VGS=-4.5V)
* High density cell design for ultra low RDS(ON)
* Special process technology for high ESD capability
* Except

📥 Download Datasheet

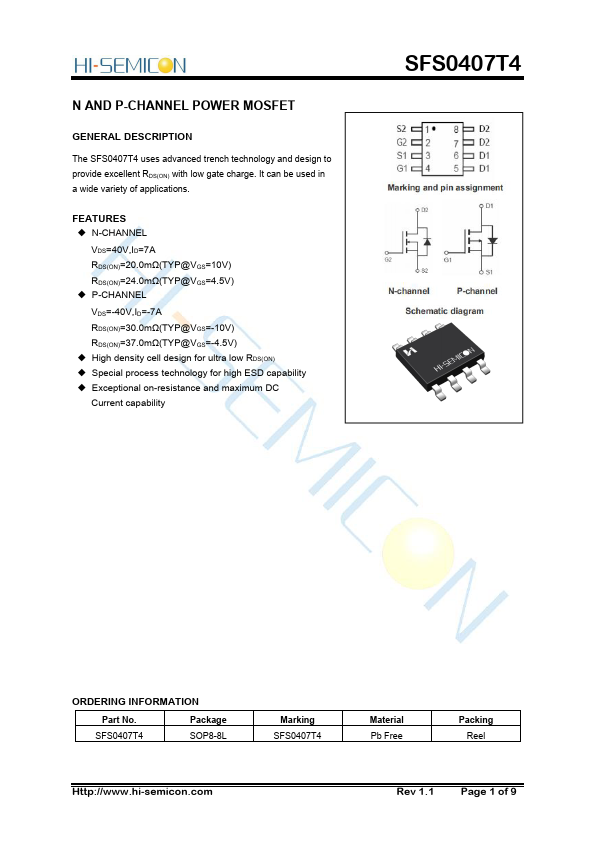

Preview of SFS0407T4 PDF

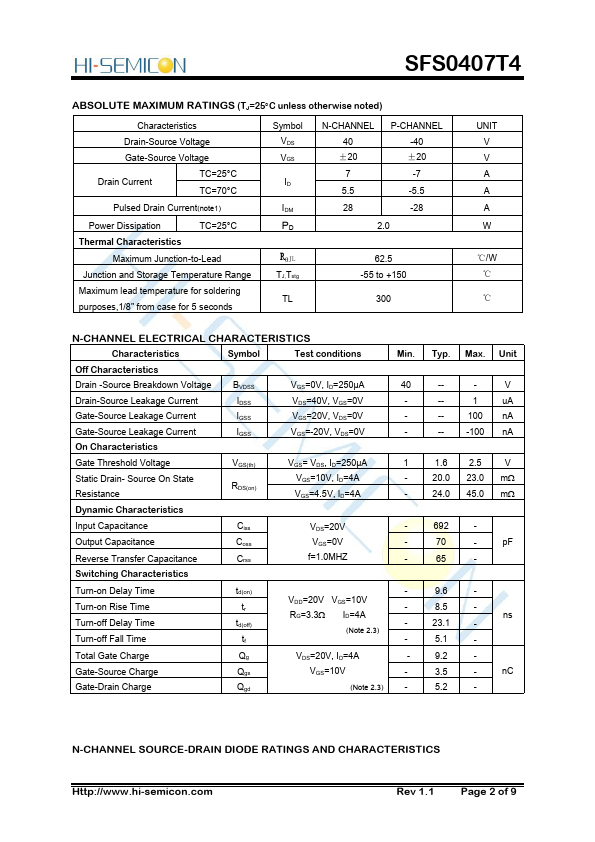

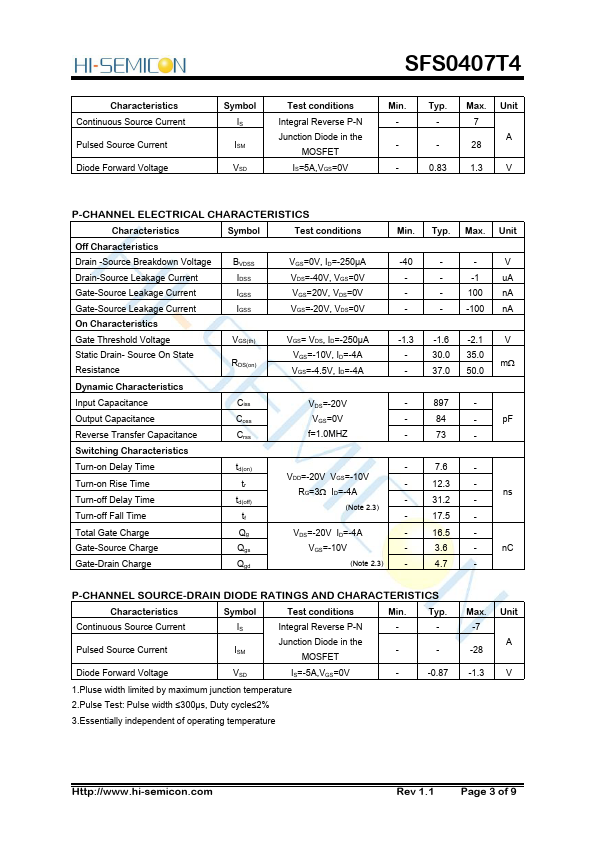

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SFS0407T4
Manufacturer
HiSemicon
File Size
868.27 KB
Datasheet
SFS0407T4-HiSemicon.pdf
Description
N AND P-CHANNEL POWER MOSFET
