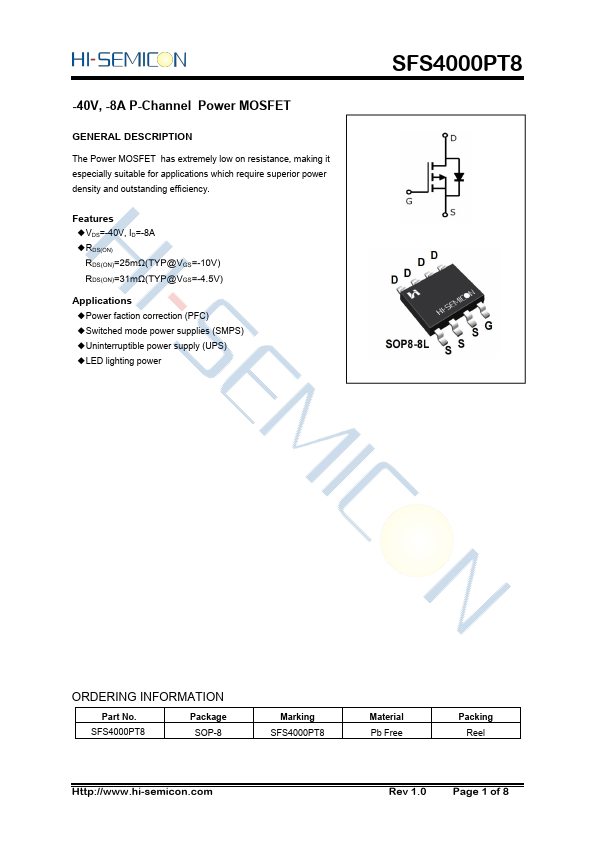

SFS4000PT8
DESCRIPTION
The Power MOSFET has extremely low on resistance, making it especially suitable for applications which require superior power density and outstanding efficiency.
Features
- VDS=-40V, ID=-8A
- RDS(ON)
RDS(ON)=25mΩ(TYP@VGS=-10V) RDS(ON)=31mΩ(TYP@VGS=-4.5V)
Applications
- Power faction correction (PFC)
- Switched mode power supplies (SMPS)
- Uninterruptible power supply (UPS)
- LED lighting power
ORDERING INFORMATION
Part No. SFS4000PT8
Package SOP-8
Marking SFS4000PT8
Material Pb Free
Packing Reel
Http://.hi-semicon.
Rev 1.0
Page 1 of 8
ABSOLUTE MAXIMUM RATINGS (TJ=25C unless otherwise noted)
Characteristics
Symbol
Ratings
Unit
Drain-Source Voltage Gate-Source Voltage
-40
±20
Drain Current
TC = 25C ID
TC = 75C
-8
-5.6
Drain Current Pulsed(Note...
