JRC16BP-10P, JRC13RC - Circular Connectors

Name: JRC16BP-10P
SKU: JRC16BP-10P-924964

Hirose Electric

The JRC16BP-10P by Hirose Electric is a Circular Connectors. Below is the official datasheet preview.

Datasheet Details

Part number	JRC16BP-10P, JRC13RC
Manufacturer	Hirose Electric
File Size	432.78 KB
Description	Circular Connectors
Datasheet	JRC13RC-HiroseElectric.pdf
Note	This datasheet PDF includes multiple part numbers: JRC16BP-10P, JRC13RC. Please refer to the document for exact specifications by model.

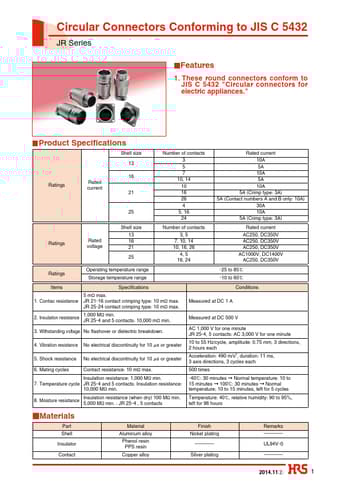

Additional preview pages of the JRC16BP-10P datasheet.

1. These round connectors conform to JIS C 5432 "Circular connectors for electric appliances. " Product Speciﬁcations Ratings Rated current Shell size 13 16 21 25 Number of contacts 3 5 7 10, 14 10 16 26 4 5, 16 24 Rated current 10A 5A 10A 5A 10A 5A (Crimp type: 3A) 5A (Contact numbers A and B only: 10A) 30A 10A 5A (Crimp type: 3A) Ratings Rated voltage Shell size 13 16 21 25 Number of contacts 3, 5 7, 10, 14 10, 16, 26 4, 5 16, 24 Rated current AC250, DC350V AC250, DC350V AC250, DC350.
