MDF12A-1416PC, MDF - Crimping Contact Directly Mounted on Board

Hirose Electric

Datasheet Details

Part number	MDF12A-1416PC, MDF
Manufacturer	Hirose Electric
File Size	111.84 KB
Description	Crimping Contact Directly Mounted on Board
Datasheet	MDF-1214.pdf
Note	This datasheet PDF includes multiple part numbers: MDF12A-1416PC, MDF. Please refer to the document for exact specifications by model.

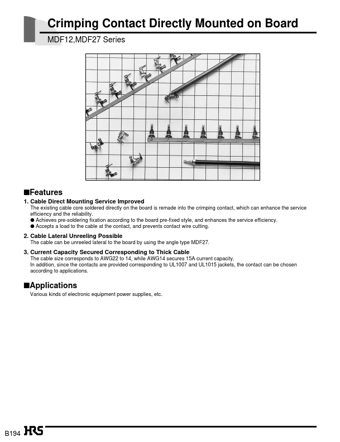

1. Cable Direct Mounting Service Improved The existing cable core soldered directly on the board is remade into the crimping contact, which can enhance the service efficiency and the reliability. q Achieves pre-soldering fixation according to the board pre-fixed style, and enhances the service efficiency. q Accepts a load to the cable at the contact, and prevents contact wire cutting. 2. Cable Lateral Unreeling Possible The cable can be unreeled lateral to the board by using the angle type MDF2.
