N-TMJ-30 - Non-reflective Terminations (Box Type)

Datasheet Summary

Features

1.High Performance These super wide bandwidth/ultra high matching nonreflective termination use Hirose Electric original high frequency matching technology. 2.Heat Sink Equipped Type The usable power has been increased to 30 W through the use of a heat sink. (5 W without heat sink) N-TMJ-30 BNC-TMJ-30 sProduct Specifications Ratings Frequency range Characteristic impedance Maximum Input Power Item 1.Vibration No electrical discontinuity of 1 µs or more No damage, cracks, or parts dislocation.

Hirose Electric

📥 Download Datasheet

Datasheet Details

Part number	N-TMJ-30
Manufacturer	Hirose Electric
File Size	54.82 KB
Description	Non-reflective Terminations (Box Type)
Datasheet	N-TMJ-30 Datasheet
Additional preview pages of the N-TMJ-30 datasheet.

📁 Similar Datasheet

Other Datasheets by Hirose Electric

N-TMP-1-1 - Non-reflective Terminations (N / TNC / SSMA / POB / FL / and PO6)
N-TMP-3-2 - Non-reflective Terminations (N / TNC / SSMA / POB / FL / and PO6)
N-TMP-5 - Non-reflective Terminations (N / TNC / SSMA / POB / FL / and PO6)

Full PDF Text Transcription

Click to expand full text

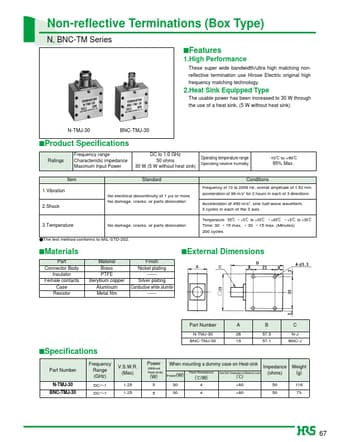

Non-reflective Terminations (Box Type) N, BNC-TM Series sFeatures 1.High Performance These super wide bandwidth/ultra high matching nonreflective termination use Hirose Electric original high frequency matching technology. 2.Heat Sink Equipped Type The usable power has been increased to 30 W through the use of a heat sink. (5 W without heat sink) N-TMJ-30 BNC-TMJ-30 sProduct Specifications Ratings Frequency range Characteristic impedance Maximum Input Power Item 1.Vibration No electrical discontinuity of 1 µs or more No damage, cracks, or parts dislocation DC to 1.0 GHz 50 ohms 30 W (5 W without heat sink) Standard Operating temperature range Operating relative humidity -10ç to +60ç 95% Max. Conditions Frequency of 10 to 2000 Hz, overall amplitude of 1.

Published: May 12, 2005 |
