DF9-13S-1V

1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)

DF9-13S-1V Features

* 1. Compliant with the VESA FPDI-1 Standard Interface Connector The 31 and 41 contact connectors comply with the standard connector specification for the flat panel display interface, which U.S VESA. has selected as FPDI-1. VESA: Video Electronics Standards Association FPDI-1: Flat Panel Display Inte

DF9-13S-1V Datasheet (275.53 KB)

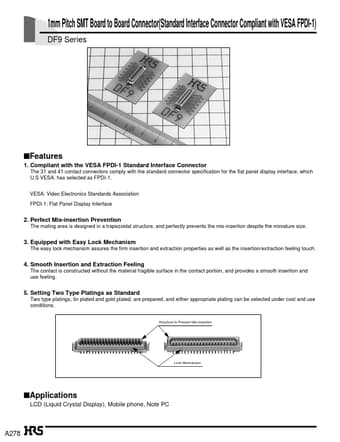

Preview of DF9-13S-1V PDF

Datasheet Details

Part number:

DF9-13S-1V

Manufacturer:

Hirose

File Size:

275.53 KB

Description:

1mm pitch smt board to board connector(standard interface connector compliant with vesa fpdi-1).
