DF9B-13S-1V, DF9 Datasheet - Hirose

DF9B-13S-1V, DF9, 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)

1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1) DF9 Series s.

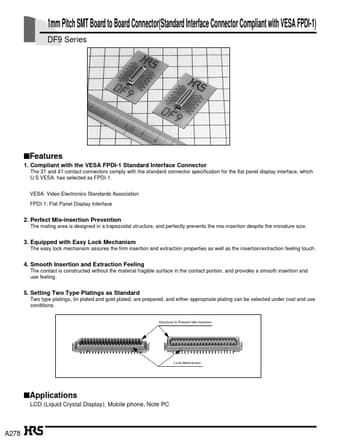

datasheet Preview Page 1 from Datasheet4u.com

DF9-A11P.pdf

DF9B-13S-1V Datasheet Preview — This datasheet PDF includes multiple part numbers: DF9B-13S-1V, DF9. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DF9B-13S-1V, DF9

Manufacturer:

Hirose

File Size:

275.53 KB

Description:

1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)

Note:

This datasheet PDF includes multiple part numbers: DF9B-13S-1V, DF9.
Please refer to the document for exact specifications by model.

Features

* 1. Compliant with the VESA FPDI-1 Standard Interface Connector The 31 and 41 contact connectors comply with the standard connector specification for the flat panel display interface, which U. S VESA. has selected as FPDI-1. VESA: Video Electronics Standards Association FPDI-1: Flat Panel Display Inte

Applications

* LCD (Liquid Crystal Display), Mobile phone, Note PC A278 sProduct Specifications Rating Current rating 0.5A Voltage rating150V AC Operating Temperature Range -45 to +125ç (Note 1) Storage Temperature Range -10 to +60ç (Note 2) Operating Humidity Range 40 to 80% Storage Humidity Range 40 to 70% It
