IC1HA-40RD-1.27SH, IC1 - PC Card Socket Connector Complies with PC card Standard

Name: IC1HA-40RD-1.27SH
SKU: IC1HA-40RD-1.27SH-382545

Hirose

The IC1HA-40RD-1.27SH by Hirose is a PC Card Socket Connector Complies with PC card Standard. Below is the official datasheet preview.

Datasheet Details

Part number	IC1HA-40RD-1.27SH, IC1
Manufacturer	Hirose
File Size	115.46 KB
Description	PC Card Socket Connector Complies with PC card Standard
Datasheet	IC1-BB4.pdf
Note	This datasheet PDF includes multiple part numbers: IC1HA-40RD-1.27SH, IC1. Please refer to the document for exact specifications by model.

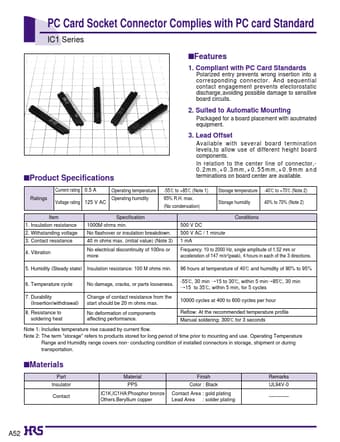

Additional preview pages of the IC1HA-40RD-1.27SH datasheet.

1. Compliant with PC Card Standards Polarized entry prevents wrong insertion into a corresponding connector. And sequential contact engagement prevents electorostatic discharge,avoiding possible damage to sensitive board circuits. 2. Suited to Automatic Mounting Packaged for a board placement with aoutmated equipment. 3. Lead Offset Available with several board termination levels,to allow use of different height board components. In relation to the center line of connector,0.2mm,+0.3mm,+0.55mm.
