Suitable for 5mm pitch high speed automatical insertion.
Small glass package (MHD) enables easy mounting and high reliability. Ordering Information
Type No. 1SS110 Cathode band Verdure Package Code MHD
Outline
1 Cathode band
2
1. Cathode 2. Anode
1SS110
Absolute Maximum Ratings (Ta = 25°C)
Item Reverse voltage Forward current Junction temperature Storage temperature Symbol VR IF Tj Tstg Value 35 100 175.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text

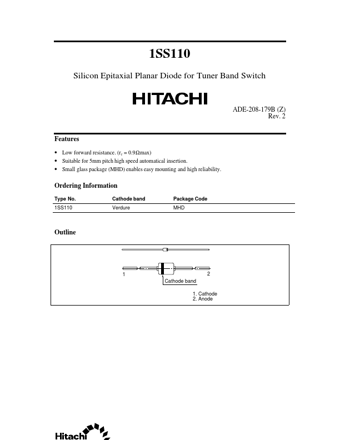

1SS110
Silicon Epitaxial Planar Diode for Tuner Band Switch
ADE-208-179B (Z) Rev. 2 Features
• Low forward resistance. (r f = 0.9 Ω max) • Suitable for 5mm pitch high speed automatical insertion. • Small glass package (MHD) enables easy mounting and high reliability.
Ordering Information
Type No. 1SS110 Cathode band Verdure Package Code MHD
Outline
1 Cathode band
2
1. Cathode 2. Anode
1SS110
Absolute Maximum Ratings (Ta = 25°C)
Item Reverse voltage Forward current Junction temperature Storage temperature Symbol VR IF Tj Tstg Value 35 100 175 –65 to +175 Unit V mA °C °C
Electrical Characteristics (Ta = 25°C)
Item Forward voltage Reverse voltage Reverse current Capacitance Forward resistance Symbol VF VR IR C rf Min — 35 — — — Typ — — — — — Max 1.0 — 0.1 1.2 0.
1SS110 Datasheet
