1SS270 - Silicon Diode

1SS270 Description

1SS270 Silicon Epitaxial Planar Diode for High Speed Switching ADE-208-165A (Z) Rev.1 Aug.1995 .

1SS270 Features

* Low capacitance. (C = 3.0pF max)
* Short reverse recovery time. (trr = 3.5ns max)
* Small glass package (MHD) enables easy mounting and high reliability. Ordering Information Type No. 1SS270 Cathode band Light Blue Package Code MHD Outline 1 Cathode band 2 1. Cathode 2

📥 Download Datasheet

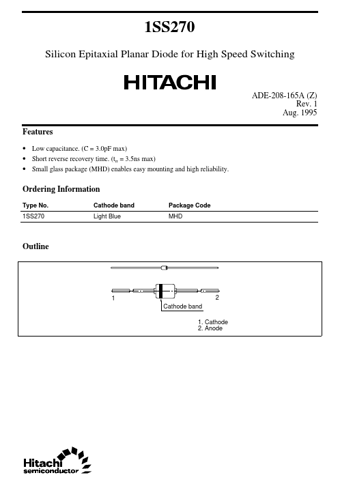

Preview of 1SS270 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SS270
Manufacturer
Hitachi Semiconductor
File Size
23.82 KB
Datasheet
1SS270_HitachiSemiconductor.pdf
Description
Silicon Diode
