26C31 - Quadruple Differential Line Drivers

General Description

The HD26C31

Key Features

  • quadruple differential line drivers which satisfy the requirements of EIA standard RS-422A. This device is designed to provide differential signals with high current capability on bus lines. The circuit provides enable input to control all four drivers. The output circuit has active pull up and pull down and is capable of sinking or sourcing 20 mA. Features.
  • TTL input compatibility.
  • Propagation delay time: 6 ns typ.
  • Output to output skew: 0.5 ns typ.
  • High outp.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
26CV12 High Performance E2CMOS PLD Generic Array Logic LatticeSemiconductor

Other Datasheets by Hitachi Semiconductor (now Renesas)

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

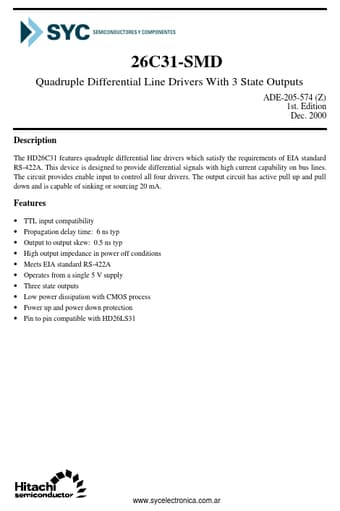

26C31-SMD Quadruple Differential Line Drivers With 3 State Outputs ADE-205-574 (Z) 1st. Edition Dec. 2000 Description The HD26C31 features quadruple differential line drivers which satisfy the requirements of EIA standard RS-422A. This device is designed to provide differential signals with high current capability on bus lines. The circuit provides enable input to control all four drivers. The output circuit has active pull up and pull down and is capable of sinking or sourcing 20 mA. Features • TTL input compatibility • Propagation delay time: 6 ns typ • Output to output skew: 0.
