2SA673 Datasheet - Hitachi Semiconductor

2SA673_HitachiSemiconductor.pdf

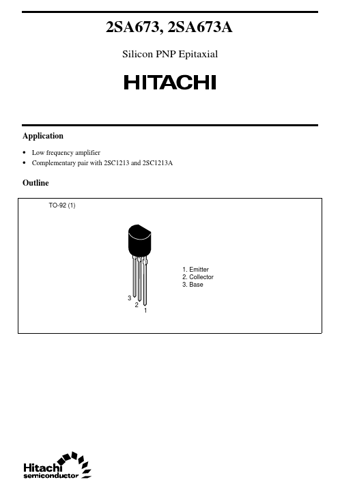

Preview of 2SA673 PDF
2SA673 Datasheet Preview Page 2 2SA673 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA673

Manufacturer:

Hitachi Semiconductor

File Size:

31.04 KB

Description:

Silicon pnp epitaxial transistor.

2SA673, Silicon PNP Epitaxial Transistor

2SA673, 2SA673A Silicon PNP Epitaxial Application Low frequency amplifier Complementary pair with 2SC1213 and 2SC1213A Outline TO-92 (1) 1.

Emitter 2.

Collector 3.

Base 3 2 1 2SA673, 2SA673A Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg 2SA673 35 35 4
