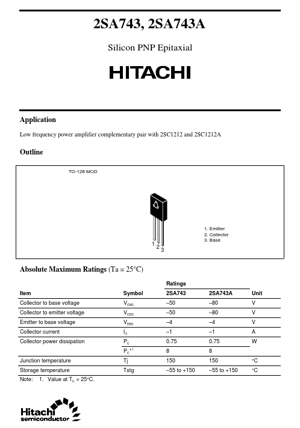

2SA743, 2SA743A Silicon PNP Epitaxial Application Low frequency power amplifier complementary pair with 2SC1212 and 2SC1212A Outline TO-126 MOD 1 1. Emitter 2. Collector 3. Base 2 3 Absolute Maximum Ratings (Ta = 25°C) Ratings Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Symbol VCBO VCEO VEBO IC PC PC * Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Tj Tstg 1 2SA743 –50 –50 –4 –1 0.75 8 150 –55 to +150 2SA743A –80 –80 –4 –1 0.
