2SJ410 - P-Channel MOSFET

Hitachi Semiconductor

📥 Download Datasheet

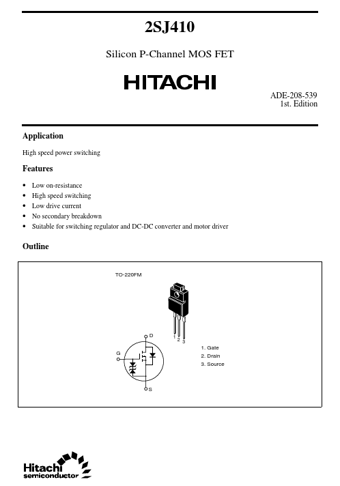

2SJ410 Datasheet Preview — Preview of 2SJ410 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SJ410
Manufacturer	Hitachi Semiconductor
File Size	29.95 KB
Description	P-Channel MOSFET
Datasheet	2SJ410_HitachiSemiconductor.pdf

2SJ410 Product details

Features

Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switching regulator and DC-DC converter and motor driver Outline TO-220FM D G 1 2 3 1. Gate 2. Drain 3. Source S 2SJ410 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes.
