2SK1522 - Silicon N-Channel MOSFET

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

2SK1522 Silicon N-Channel MOSFET by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – 2SK1522

Datasheet Details

Part number	2SK1522
Manufacturer	Hitachi Semiconductor
File Size	49.58 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK1522 Datasheet
Additional preview pages of the 2SK1522 datasheet.

Product details

Features

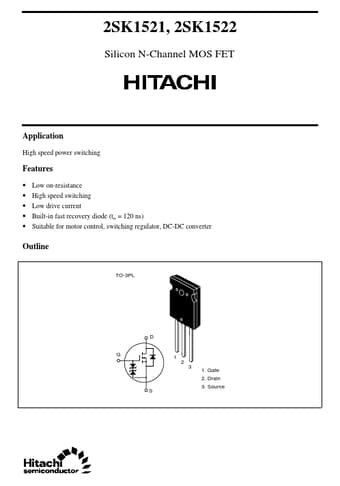

Low on-resistance High speed switching Low drive current Built-in fast recovery diode (trr = 120 ns) Suitable for motor control, switching regulator, DC-DC converter Outline TO-3PL D G 1 2 3 S 1. Gate 2. Drain 3. Source 2SK1521, 2SK1522 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage 2SK1521 2SK1522 Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Chan.
