74LS37 Datasheet - Hitachi Semiconductor

74LS37 Quadruple 2-input Positive NAND Buffers

Unit: mm 19.20 20.32 Max 14 8 6.30 7.40 Max 1 2.39 Max 1.30 7 7.62 0.51 Min 2.54 Min 5.06 Max 2.54 ± 0.25 0.48 ± 0.10 0.25 0.05 0° 15° + 0.10 Hitachi Code JEDEC EIAJ Weight (reference value) DP-14 Conforms Conforms 0.97 g Unit: mm 10.06 10.5 Max 14 8 5.5 1 7 0.22 ± 0.05 0.20 ± 0.04 2.20 Max 7.80 0.30 1.15 0° 8° + 0.20 1.42 Max 1.27 0.42 ± 0.08 0.40 ± 0.06 0.10 ± 0.10 0.70 ± 0.20 0.15 0.12 M Hitachi Code JEDEC EIAJ Weight (referenc.

74LS37 Datasheet (45.16 KB)

Preview of 74LS37 PDF

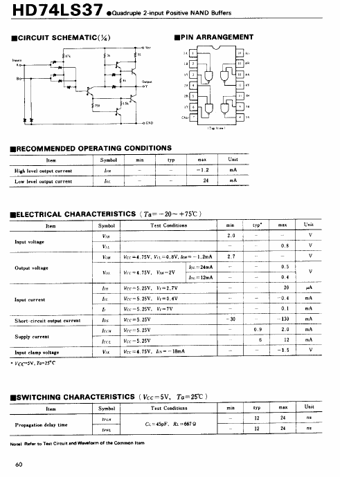

74LS37 Datasheet Preview Page 2 74LS37 Datasheet Preview Page 3

Datasheet Details

Part number:

74LS37

Manufacturer:

Hitachi Semiconductor

File Size:

45.16 KB

Description:

Quadruple 2-input positive nand buffers.
