HA17008RP - 8-Bit Multiplying Digital to Analog Converter

Product Overview

Hitachi Semiconductor

Datasheet Details

Part number	HA17008RP
Manufacturer	Hitachi Semiconductor
File Size	87.19 KB
Description	8-Bit Multiplying Digital to Analog Converter
Datasheet	HA17008RP Datasheet
Note	This datasheet PDF includes multiple part numbers: HA17008RP, HA17008RFP. Please refer to the document for exact specifications by model.

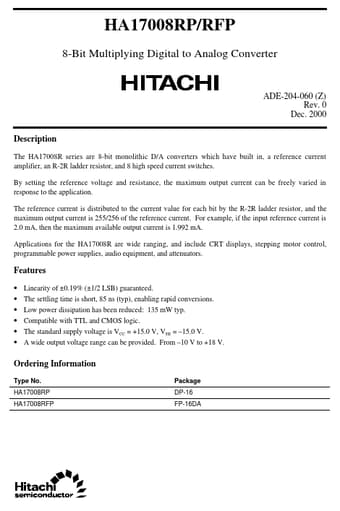

Additional preview pages of the HA17008RP datasheet.

Product details

Description

The HA17008R series are 8-bit monolithic D/A converters which have built in, a reference current amplifier, an R-2R ladder resistor, and 8 high speed current switches.

Features

Linearity of ±0.19% (±1/2 LSB) guaranteed. The settling time is short, 85 ns (typ), enabling rapid conversions. Low power dissipation has been reduced: 135 mW typ. Compatible with TTL and CMOS logic. The standard supply voltage is VCC = +15.0 V, VEE =.
15.0 V. A wide output voltage range can be provided. From.
10 V to +18 V. Ordering Information Type No. HA17008RP HA17008RFP Package DP-16 FP-16DA HA17008RP/RFP Pin Arra.
