HA17324 - Quad Operational Amplifier

Product Overview

Hitachi Semiconductor

Part number	HA17324
Manufacturer	Hitachi Semiconductor
File Size	55.43 KB
Description	Quad Operational Amplifier
Datasheet	HA17324 Datasheet

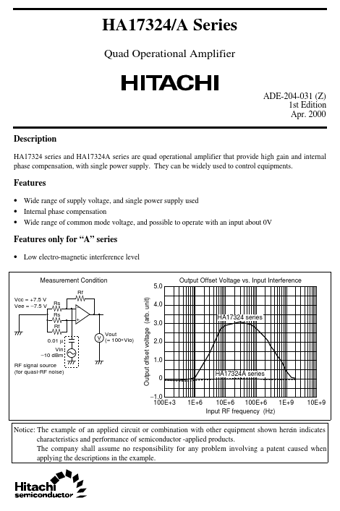

Additional preview pages of the HA17324 datasheet.

HA17324 series and HA17324A series are quad operational amplifier that provide high gain and internal phase compensation, with single power supply.

Wide range of supply voltage, and single power supply used.
Internal phase compensation.
Wide range of common mode voltage, and possible to operate with an input about 0V Features only for “A” series.
Low electro-magnetic interference level Measurement Condition Rf Vcc = +7.5 V Vee =.
7.5 V Rs Rs Rf 0.01 µ Vin.
10 dBm RF signal source (for quasi-RF noise) Vout V _ (= 100∗Vio) 5.0 Output offset voltage (arb. unit) Output Offset Voltage vs. I.
