HB28D096C6 - (HB28D032C6 / HB28D096C6) Compact Flash 96M / 32M

Product Overview

Hitachi Semiconductor

Part number	HB28D096C6
Manufacturer	Hitachi Semiconductor
File Size	198.00 KB
Description	(HB28D032C6 / HB28D096C6) Compact Flash 96M / 32M
Datasheet	HB28D096C6 Datasheet
Note	This datasheet PDF includes multiple part numbers: HB28D096C6, HB28D032C6. Please refer to the document for exact specifications by model.

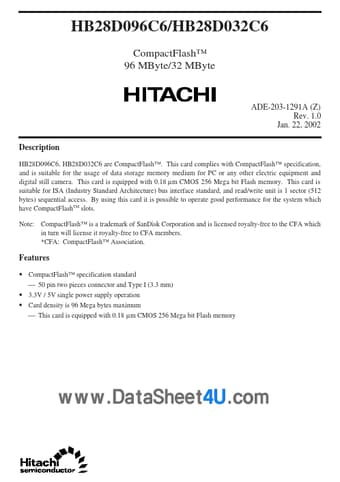

Additional preview pages of the HB28D096C6 datasheet.

HB28D096C6, HB28D032C6 are CompactFlash™.

CompactFlash™ specification standard  50 pin two pieces connector and Type I (3.3 mm).
3.3V / 5V single power supply operation.
Card density is 96 Mega bytes maximum  This card is equipped with 0.18 µm CMOS 256 Mega bit Flash memory HB28D096/032C6.
3 variations of mode access  Memory card mode  I/O card mode  True IDE mode.
Internal self-diagnostic program operates at VCC power on.
High reliability based on internal ECC (Error Correcti.
