HCD404669 - Low-Voltage AS Microcomputers

Datasheet Summary

Description

The HD404669 Series microcomputers incorporate a DTMF generation circuit, two comparators, and a serial interface on chip.

They also provide input and output pins with large current handling capacities.

Features

  • 1,152-digit × 4-bit RAM.
  • I/O pins: 47  High-current I/O pins (source: 10 mA max. ): 4  High-current I/O pins (sink: 15 mA max. ): 5.
  • Timer counters: 3.
  • Input capture: one 8-bit channel.
  • Timer outputs: 2 (with PWM output capability).
  • Event input: 1 (edge-programmable).
  • Clock synchronous 8-bit serial interface: 1.
  • DTMF generation circuit.
  • Comparator: 2 channels.
  • System clock oscillator Ceramic oscillator, cr.

📥 Download Datasheet

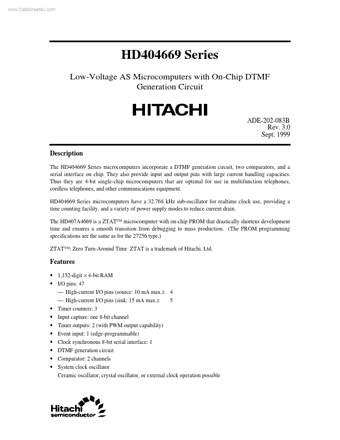

Datasheet preview – HCD404669

Datasheet Details

Part number HCD404669
Manufacturer Hitachi Semiconductor
File Size 475.60 KB
Description Low-Voltage AS Microcomputers
Datasheet download datasheet HCD404669 Datasheet
Additional preview pages of the HCD404669 datasheet.

📁 Similar Datasheet

  • HCD404889 - Low-Voltage AS Microcomputers with On-Chip LCD Circuit (ETC)
  • HCD44100R - LCD Driver (Hitachi)
  • HCD-D690 - (HCD-D690/XB6/XB600) SERVICE MANUAL (Sony)
  • HCD-D890AV - COMPACT DISC DECK RECEIVER SERVICE MANUAL (Sony)
  • HCD-DX155 - (HCD-DX155 / HCD-DX255) SUPER AUDIO CD/DVD RECEIVER User Manual (Sony)
  • HCD-DX255 - (HCD-DX155 / HCD-DX255) SUPER AUDIO CD/DVD RECEIVER User Manual (Sony)
  • HCD-DX375 - SUPER AUDIO CD/DVD RECEIVER SERVICE MANUAL (Sony)
  • HCD-DX400 - DVD RECIEVER SERVICE MANUAL (Sony)
  • HCD-DZ100 - SUPER AUDIO CD/DVD RECEIVER SERVICE MANUAL (Sony)
  • HCD-DZ100K - SUPER AUDIO CD/DVD RECEIVER SERVICE MANUAL (Sony)
Other Datasheets by Hitachi Semiconductor
  • HCD61202U - Dot Matrix Liquid Crystal GraphicDisplay Column Driver
  • HCD61203U - Dot Matrix Liquid Crystal Graphic Display 64-Channel Common Driver

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com HD404669 Series Low-Voltage AS Microcomputers with On-Chip DTMF Generation Circuit ADE-202-083B Rev. 3.0 Sept. 1999 Description The HD404669 Series microcomputers incorporate a DTMF generation circuit, two comparators, and a serial interface on chip. They also provide input and output pins with large current handling capacities. Thus they are 4-bit single-chip microcomputers that are optimal for use in multifunction telephones, cordless telephones, and other communications equipment. HD404669 Series microcomputers have a 32.768 kHz sub-oscillator for realtime clock use, providing a time counting facility, and a variety of power supply modes to reduce current drain.
