HD404316H 4-bit HMCS400-series microcomputer

The HD404318 Series is 4-bit HMCS400-series microcomputer with large-capacity memory designed to increase program productivity. Each microcomputer has an A/D converter and input capture timer built in. They also come with high-voltage I/O pins that can directly drive a fluorescent display. The HD404.

HD404316H Features

* 34 I/O pins  One input-only pin  33 input/output pins: 21 pins are high-voltage pins (40 V, max.)

* On-chip A/D converter (8-bit × 8-channel)

* Three timers  One event counter input  One timer output  One input capture timer

* 8-bit clock-synchronous serial int

HD404-314S.pdf

This datasheet PDF includes multiple part numbers: HD404316H, HD404. Please refer to the document for exact specifications by model.

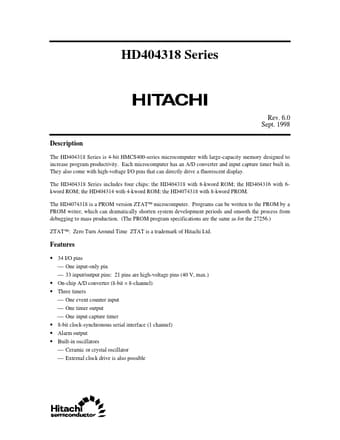

HD404316H Datasheet Preview Page 2 HD404316H Datasheet Preview Page 3

Datasheet Details

Part number:

HD404316H, HD404

Manufacturer:

Hitachi Semiconductor

File Size:

305.07 KB

Description:

4-bit hmcs400-series microcomputer.

Note:

This datasheet PDF includes multiple part numbers: HD404316H, HD404.
Please refer to the document for exact specifications by model.
