HD4074008 - Two timer/counters

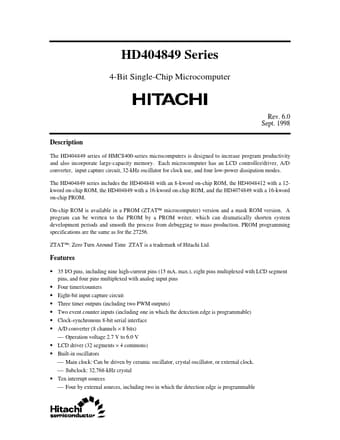

The HD404849 series of HMCS400-series microcomputers is designed to increase program productivity and also incorporate large-capacity memory.

Each microcomputer has an LCD controller/driver, A/D converter, input capture circuit, 32-kHz oscillator for clock use, and four low-power dissipation modes.

HD4074008 Features

* 35 I/O pins, including nine high-current pins (15 mA, max.), eight pins multiplexed with LCD segment pins, and four pins multiplexed with analog input pins

* Four timer/counters

* Eight-bit input capture circuit

* Three timer outputs (including two PWM outputs)
