K1518 - 2SK1518

Hitachi Semiconductor

Datasheet Details

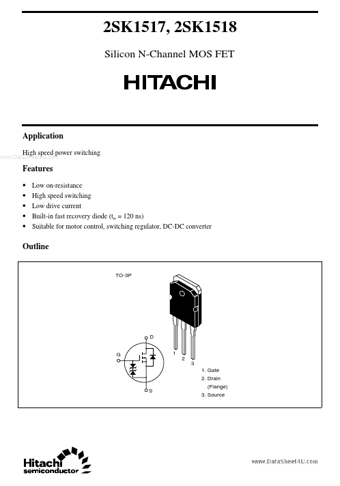

Low on-resistance High speed switching Low drive current Built-in fast recovery diode (trr = 120 ns) Suitable for motor control, switching regulator, DC-DC converter Outline TO-3P D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source S 2SK1517, 2SK1518 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage 2SK1517 2SK1518 Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation.
