K1762 - 2SK1762

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

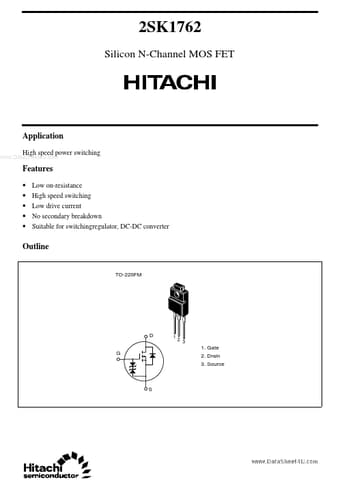

K1762 2SK1762 by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – K1762

Datasheet Details

Part number	K1762
Manufacturer	Hitachi Semiconductor
File Size	62.64 KB
Description	2SK1762
Datasheet	K1762 Datasheet
Additional preview pages of the K1762 datasheet.

Product details

Features

Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switchingregulator, DC-DC converter Outline TO-220FM D G 1 2 3 1. Gate 2. Drain 3. Source S 2SK1762 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes 1. PW ≤ 10 µs, duty.
