1N4749A, 1N4728A Datasheet - Hitachi

1N4749A Silicon Epitaxial Planar Zener Diodes

1N4749A Features

* Glass package DO-41 structure ensures high reliability.

* Wide spectrum from 3.3V through 36V of zener voltage provide flexible application. Ordering Information Type No. 1N4728A through 1N4753A Mark Type No. Package Code DO-41 Outline 12 Type No. Cathode band 1. Cathode 2. An

1N4728A-Hitachi.pdf

This datasheet PDF includes multiple part numbers: 1N4749A, 1N4728A. Please refer to the document for exact specifications by model.

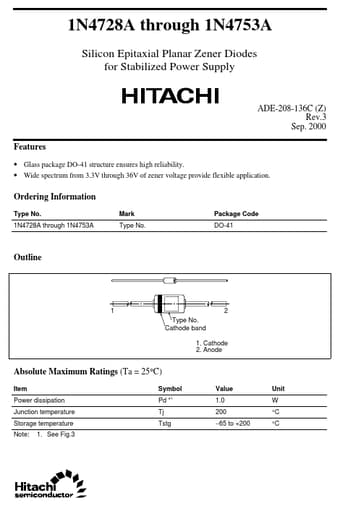

1N4749A Datasheet Preview Page 2 1N4749A Datasheet Preview Page 3

Datasheet Details

Part number:

1N4749A, 1N4728A

Manufacturer:

Hitachi

File Size:

31.16 KB

Description:

Silicon epitaxial planar zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N4749A, 1N4728A.
Please refer to the document for exact specifications by model.
