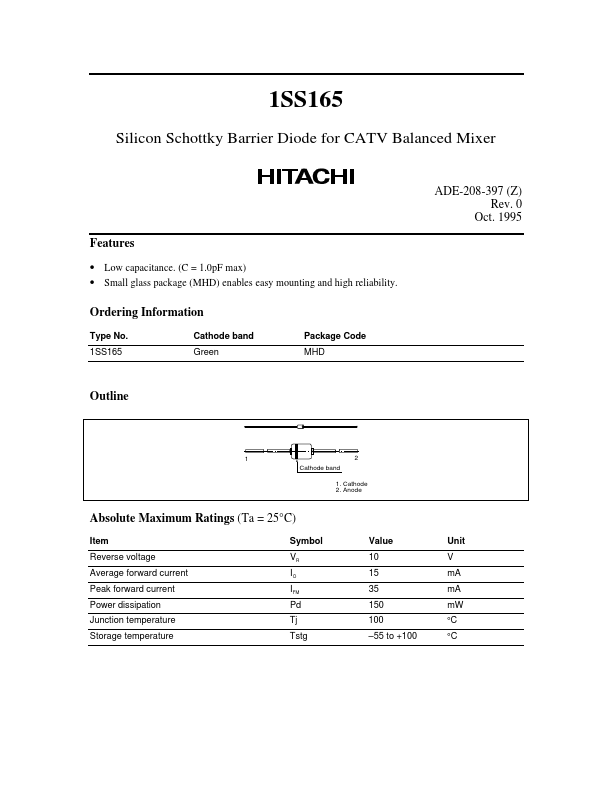

1SS165
Features
- Low capacitance. (C = 1.0p F max)
- Small glass package (MHD) enables easy mounting and high reliability.
Ordering Information
Type No. 1SS165
Cathode band Green
Package Code MHD
ADE-208-397 (Z) Rev. 0
Oct. 1995
Outline
Cathode band
1. Cathode 2. Anode
Absolute Maximum Ratings (Ta = 25°C)
Item Reverse voltage Average forward current Peak forward current Power dissipation Junction temperature Storage temperature
Symbol VR IO IFM Pd Tj Tstg
Value 10 15 35 150 100
- 55 to +100
Unit V m A m A m W °C °C

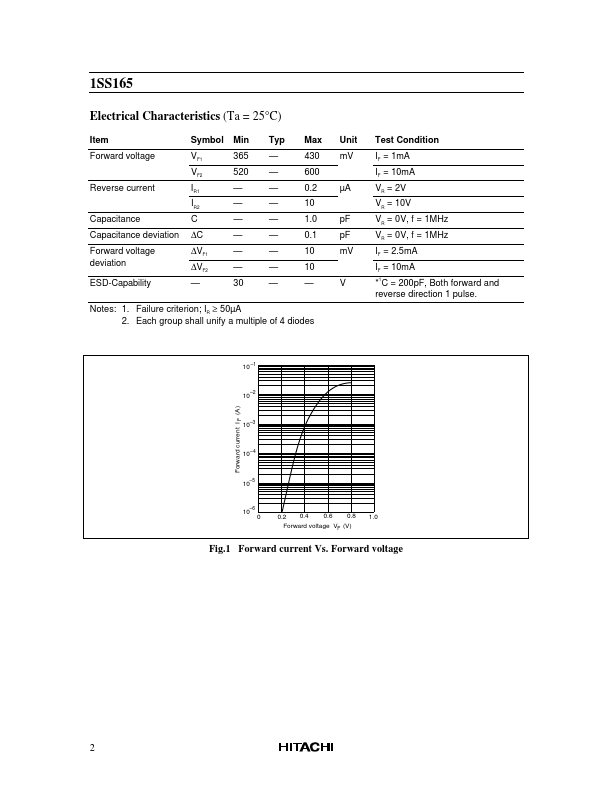

Electrical Characteristics (Ta = 25°C)
Item
Symbol Min Typ Max
Forward voltage Reverse current Capacitance
VF1
- 430
VF2
- 600
IR1
- -
IR2
- -
- -
Capacitance deviation ∆C
- -...
