1SS270A - Silicon Epitaxial Planar Diode

1SS270A Description

1SS270A Silicon Epitaxial Planar Diode for High Speed Switching REJ03G0567-0400 Rev.4.00 Sep 29, 2008 .

1SS270A Features

* Low capacitance. (C = 3.0 pF max)
* Short reverse recovery time. (trr = 3.5 ns max)
* Small glass package (MHD) enables easy mounting and high reliability. Ordering Information Part No. 1SS270A Cathode Band Navy Blue Package Name MHD Package Code GRZZ0002ZC-A Pin Arran

1SS270A Applications

* such as the development of weapons of mass destruction or for the purpose of any other military use. When exporting the products or technology described herein, you should follow the applicable export control laws and regulations, and procedures required by such laws and regulations. 4. All informat

📥 Download Datasheet

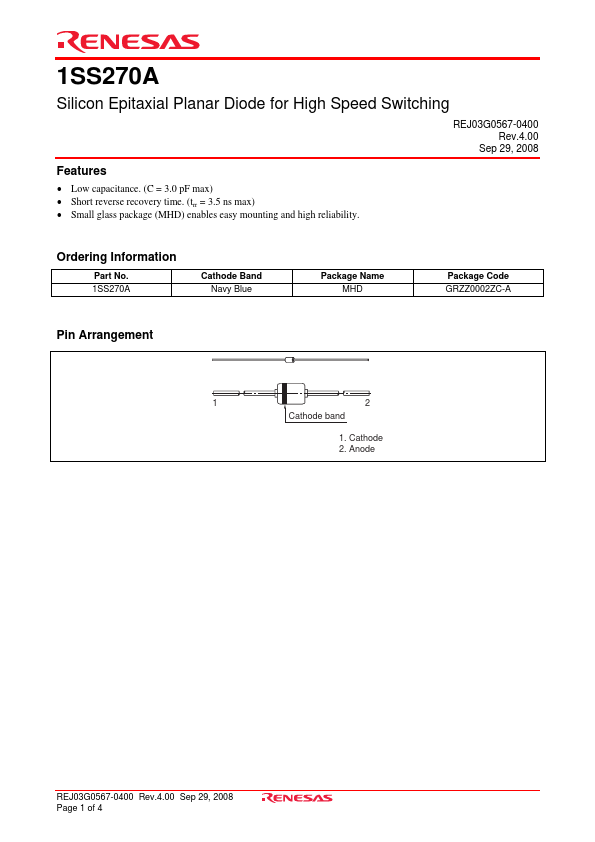

Preview of 1SS270A PDF

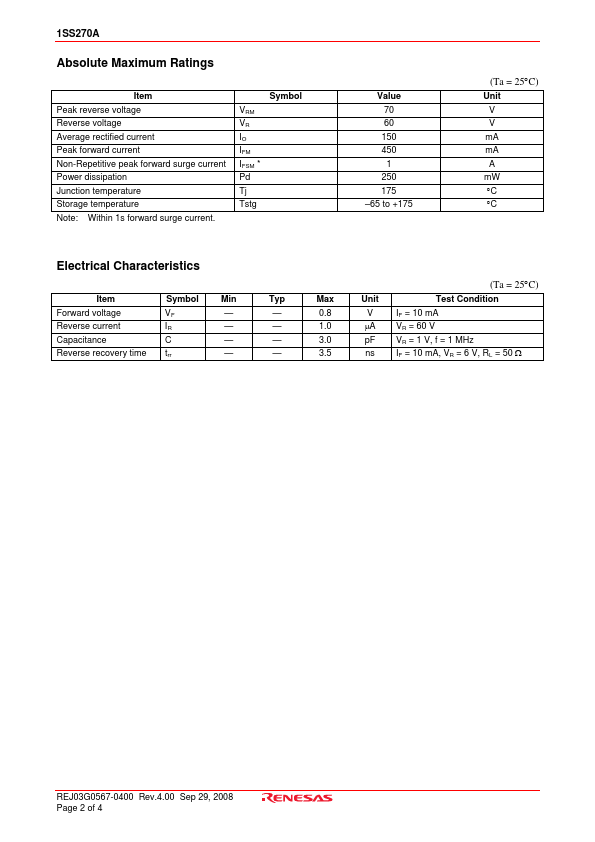

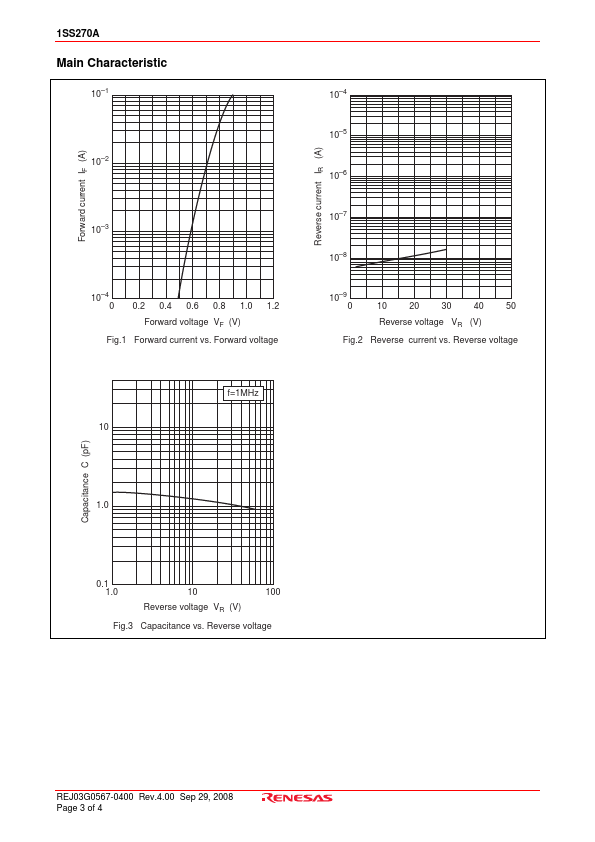

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SS270A
Manufacturer
Hitachi
File Size
71.17 KB
Datasheet
1SS270A-Hitachi.pdf
Description
Silicon Epitaxial Planar Diode
