HD40L4814, HD40L4816 Datasheet - Hitachi

HD40L4814 4-Bit Single-Chip Microcomputer

The H D4 04 81 8 Seri es of 4-bit single-chip HMCS400 series microcomputers provide high program productivity. It incorporates a large size memory, LCD controller/driver, voltage comparator, and 32-kHz watch oscillator circuit. The HD404818 Series has both standard voltage versions and low voltage v.

HD40L4816_Hitachi.pdf

This datasheet PDF includes multiple part numbers: HD40L4814, HD40L4816. Please refer to the document for exact specifications by model.

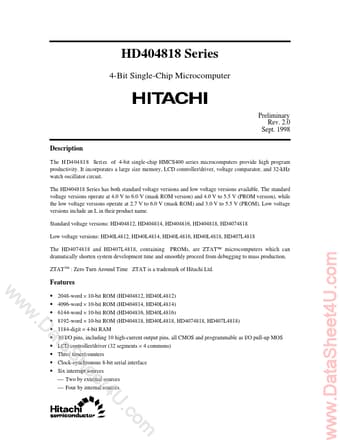

HD40L4814 Datasheet Preview Page 2 HD40L4814 Datasheet Preview Page 3

Datasheet Details

Part number:

HD40L4814, HD40L4816

Manufacturer:

Hitachi

File Size:

455.47 KB

Description:

4-bit single-chip microcomputer.

Note:

This datasheet PDF includes multiple part numbers: HD40L4814, HD40L4816.
Please refer to the document for exact specifications by model.
