HZM3.9N - Silicon Epitaxial Planar Zener Diode

This page provides the datasheet information for the HZM3.9N, a member of the HZM2.0N Silicon Epitaxial Planar Zener Diode family.

Features

  • Wide spectrum from 1.9V through 38V of zener voltage provide flexible.

📥 Download Datasheet

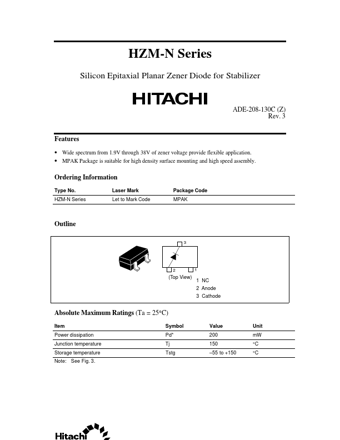

Datasheet preview – HZM3.9N

Datasheet Details

Part number HZM3.9N
Manufacturer Hitachi
File Size 39.09 KB
Description Silicon Epitaxial Planar Zener Diode
Datasheet download datasheet HZM3.9N Datasheet
Additional preview pages of the HZM3.9N datasheet.

📁 Similar Datasheet

  • HZM3.9N - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZM3.0N - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZM3.3N - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZM3.6N - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZM30N - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZM33N - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZM36N - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZM10N - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZM11N - Silicon Epitaxial Planar Zener Diode (Renesas)
  • HZM12N - Silicon Epitaxial Planar Zener Diode (Renesas)
Other Datasheets by Hitachi
  • HZM3.0N - Silicon Epitaxial Planar Zener Diode
  • HZM3.3N - Silicon Epitaxial Planar Zener Diode
  • HZM3.6N - Silicon Epitaxial Planar Zener Diode
  • HZM30N - Silicon Epitaxial Planar Zener Diode
  • HZM33N - Silicon Epitaxial Planar Zener Diode
  • HZM36N - Silicon Epitaxial Planar Zener Diode
  • HZM10N - Silicon Epitaxial Planar Zener Diode
  • HZM11N - Silicon Epitaxial Planar Zener Diode

Full PDF Text Transcription

Click to expand full text
HZM-N Series Silicon Epitaxial Planar Zener Diode for Stabilizer ADE-208-130C (Z) Rev. 3 Features • Wide spectrum from 1.9V through 38V of zener voltage provide flexible application. • MPAK Package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HZM-N Series Laser Mark Let to Mark Code Package Code MPAK Outline 3 21 (Top View) 1 NC 2 Anode 3 Cathode Absolute Maximum Ratings (Ta = 25°C) Item Power dissipation Junction temperature Storage temperature Note: See Fig. 3. Symbol Pd* Tj Tstg Value 200 150 –55 to +150 Unit mW °C °C HZM-N Series Electrical Characteristics (Ta = 25°C) Zener Voltage* Type VZ (V) Grade Min Max HZM2.0N B 1.90 2.20 HZM2.2N B 2.10 2.40 HZM2.4N B 2.30 2.60 HZM2.7N B 2.50 2.90 B1 2.50 2.
