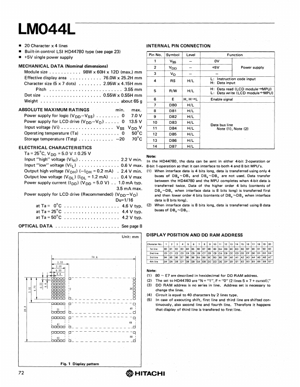

LM044L
• 20 Character x 4 lines • Built-in control LSI HD44780 type (see page 23) • +5V single power supply
MECHANICAL DATA (Nominal dimensions)
Module size . _ ......... 98W x 60H x 120 (max.) mm
Effective display area ......... 76.0W x 25.2H mm
Character size (5 x 7 dots) . . . . . . . . 2.95W x 4.15H mm
Pitch ......................... 3.55 mm
Dot size ..................... 0.55W x 0.55H mm
Weight . . . . . . . . . . . . . . . . . .
. . about 65 g
ABSOLUTE MAXIMUM RATINGS
min. max.
Power supply for logic (VDD-VSS)
.... 0 7.0 V
Power supply for LCD drive (VDD-VO) ..... 0 13.5 V
Input voltage (Vi) . . . . . . . . . . . . . . . . . . Vss VDD V
Operating temperature (Ta) .......
.. 0 50°C
Storage temperature (Tstg) . . . . . . . . . . ..
LM044L Datasheet
