HMC620 - GaAs MMIC I/Q MIXER

Description

The HMC620 is a compact I/Q MMIC mixer which can be used as either an Image Reject Mixer (IRM) or a Single Sideband Upconverter.

The chip utilizes two standard Hittite double balanced mixer cells and a 90 degree hybrid fabricated in a GaAs MESFET process.

Features

  • Wide IF Bandwidth: DC - 3.5 GHz High Image Rejection: 33 dB High LO to RF Isolation: 45 dB High Input IP3: +23 dB Die Size: 1.49 x 1.15 x 0.10 mm 3 MIXERS - CHIP.
  • Point-to-Multi-Point Radios.
  • WiMAX & Fixed Wireless.
  • VSAT www. DataSheet4U. com Functional Diagram General.

📥 Download Datasheet

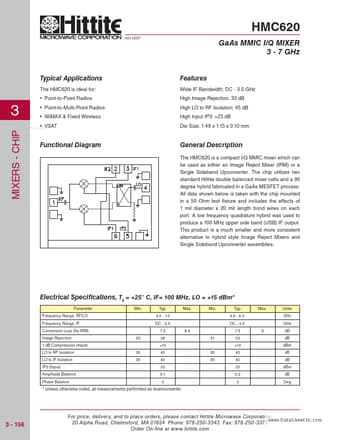

Datasheet preview – HMC620
