HT12E

Encoders

HT12E Features

* Operating voltage - 2.4V~5V for the HT12A - 2.4V~12V for the HT12E

* Low power and high noise immunity CMOS technology

* Low standby current: 0.1mA (typ.) at VDD=5V

* HT12A with a 38kHz carrier for infrared transmission medium

* Minimum transmission word - Four words for the H

HT12E General Description

The 212 encoders are a series of CMOS LSIs for remote control system applications. They are capable of encoding information which consists of N address bits and 12-N data bits. Each address/data input can be set .

HT12E Datasheet (295.22 KB)

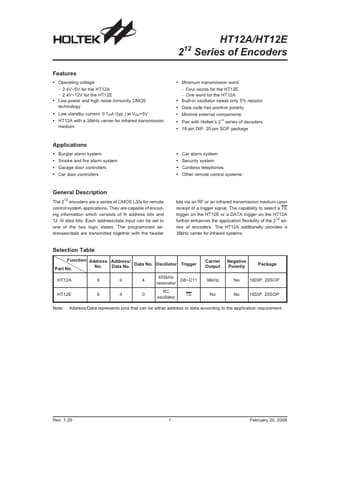

Preview of HT12E PDF

Datasheet Details

Part number:

HT12E

Manufacturer:

Holtek Semiconductor Inc

File Size:

295.22 KB

Description:

Encoders.
