HT1602

40 Dot Matrix LCD Segment Driver

HT1602 Features

* Operating voltage: 4.5V~5.5V LCD driving voltage: 8V~16V Applicable LCD duty cycle from 1/8 to 1/64 Suitable for various types of LCD panel Bias voltage adjustable from an external source Applications

* Electronic dictionaries P

HT1602 General Description

The HT1602 is a dot matrix LCD segment driver LSI implemented in CMOS technology. It is equipped with a 40-bit shift register (two 20-bit shift registers), a 40-bit latch (two 20-bit latches), a 40-bit level shifter, a 40-bit 4-level driver, and control circuits. The HT1602 can convert serial data r.

HT1602 Datasheet (215.73 KB)

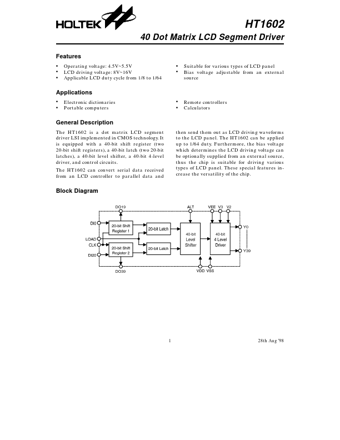

Preview of HT1602 PDF

Datasheet Details

Part number:

HT1602

Manufacturer:

Holtek Semiconductor Inc

File Size:

215.73 KB

Description:

40 dot matrix lcd segment driver.
