HT48R05A-1 - 8-Bit OTP Microcontroller

Product Overview

Holtek Semiconductor Inc

Part number	HT48R05A-1
Manufacturer	Holtek Semiconductor Inc
File Size	285.47 KB
Description	8-Bit OTP Microcontroller
Datasheet	HT48R05A-1 Datasheet

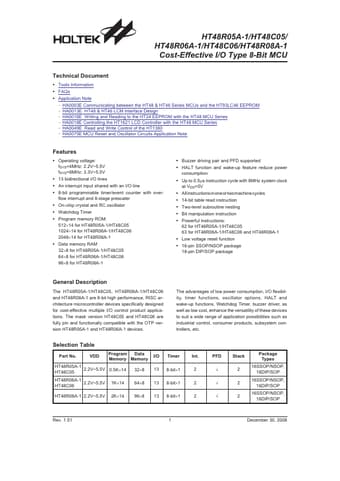

Additional preview pages of the HT48R05A-1 datasheet.

The device is an 8-bit high performance RISC-like microcontroller designed for multiple I/O product applications.

HT48R05A-1 8-Bit OTP Microcontroller.
Operating voltage: fSYS=4MHz: 3.3V~5.5V fSYS=8MHz: 4.5V~5.5V 13 bidirectional I/O lines An interrupt input shared with an I/O line 8-bit programmable timer/event counter with overflow interrupt and 8-stage prescaler On-chip crystal and RC oscillator Watchdog timer 512´14 program memory PROM 32´8 data memory RAM Buzzer driving pair and PFD supported Halt fu.
